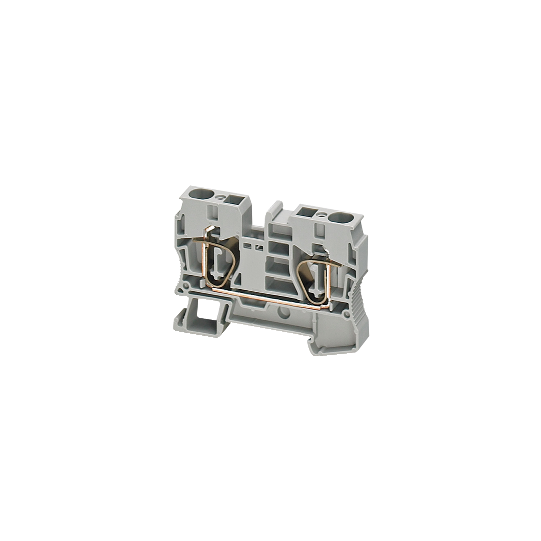

SPRING TERMINAL, FEED THROUGH, 2 POINTS, 10MM², GREY - NSYTRR102
SKU : NSYTRR102
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
SPRING TERMINAL, FEED THROUGH, 2 POINTS, 10MM², GREY - NSYTRR102
DESCRIPTION
| Range of product: | Linergy |
|---|---|
| Range: | Linergy |
| Product name: | Linergy TR |
| Product or component type: | Terminal block |
| Device short name: | TRR |
| Accessory / separate part category: | Connection accessory |
| Terminal block type: | Passthrough |
| Terminal block level: | 1 |
| Mounting mode: | Clip-on |
| Nominal cross section: | 10 mm² |
| Length: | 71.5 mm |
| Colour: | Grey |
| Quantity per set: | Set of 50 |
| Width: | 10.2 mm |
|---|---|
| Height: | 50.5 mm |
| Connections - terminals: | 1 x spring terminal: upstream1 x spring terminal: downstream |
| Number of terminals: | 2 |
| Connection position: | Top |
| Number of measurement input: | 2 |
| Cable cross section: | 0.2...10 mm², flexible without cable end0.2...16 mm², solid with cable end0.5...10 mm², flexible with cable end0.2...16 mm², solid without cable end |
| Wire stripping length: | 18 mm |
| Tool type: | Connection: flat screwdriverDisconnection: flat screwdriver |
| [Ue] rated operational voltage: | 600 V CSA800 V conforming to EN/IEC 60947-7-1600 V UL |
| [In] rated current: | 57 A conforming to EN/IEC 60947-7-165 A CSA65 A UL |
| Material: | Polyamide 6/6: insulating caseCopper alloy: connector and screwCopper alloy: commoning linkChromium-nickel steel: spring |
| Dielectric loss: | 0.01 at 1 MHz conforming to IEC 602500.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant: | 3.7 at 1 MHz |
| Resistivity: | 10000 M?.m conforming to IEC 6009310000 M?.m conforming to VDE 0303-T30 |
| Surface resistance: | 1000 G? conforming to IEC 600931000 G? conforming to VDE 0303-T30 |
| Creep resistance: | 500 CTI (> 400 kB) conforming to IEC 60093500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance: | V0, thickness0.8 mm conforming to UL 94 |
| Product weight: | 25.3 g |
| Range compatibility: | PrismaSeT GPrismaSeT PPrismaSet HDPrismaSeT Pack 250PanelSeTMurevaPrismaSeT XSTeSys |
| Product compatibility: | Spacial enclosures |
| Compatibility code: | Terminal block |
| Product certifications: | VDECSAGLDNVUL |
|---|---|
| Dielectric strength: | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation: | -40...130 °C conforming to IEC 60216-1-40...130 °C conforming to VDE 0304-T21 |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope)Environmental Disclosure |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480532832 |
|---|
