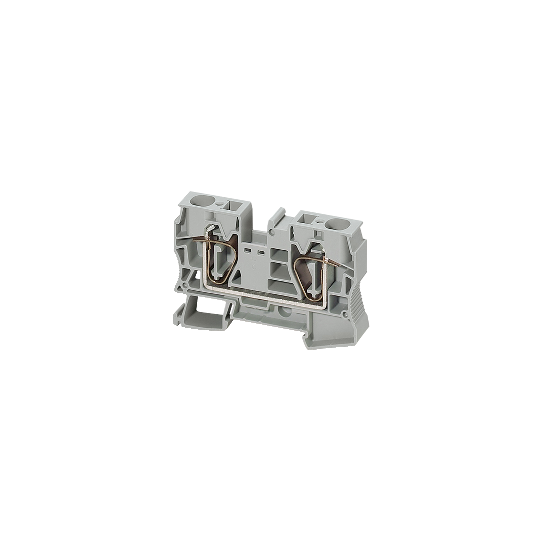

SPRING TERMINAL, FEED THROUGH, 2 POINTS, 16MM², GREY - NSYTRR162
DESCRIPTION
| Range of product: | Linergy |
|---|---|
| Range: | Linergy |
| Product name: | Linergy TR |
| Product or component type: | Terminal block |
| Device short name: | TRR |
| Accessory / separate part category: | Connection accessory |
| Terminal block type: | Passthrough |
| Terminal block level: | 1 |
| Mounting mode: | Clip-on |
| Nominal cross section: | 16 mm² |
| Length: | 80 mm |
| Colour: | Grey |
| Quantity per set: | Set of 50 |
| Width: | 12.2 mm |
|---|---|
| Height: | 51 mm |
| Connections - terminals: | 1 x spring terminal: upstream1 x spring terminal: downstream |
| Number of terminals: | 2 |
| Connection position: | Top |
| Number of measurement input: | 2 |
| Cable cross section: | 0.2...16 mm², flexible without cable end0.2...25 mm², solid with cable end1.5...16 mm², flexible with cable end0.2...25 mm², solid without cable end |
| Wire stripping length: | 18 mm |
| Tool type: | Connection: flat screwdriverDisconnection: flat screwdriver |
| [Ue] rated operational voltage: | 600 V CSA800 V conforming to EN/IEC 60947-7-1600 V UL |
| [In] rated current: | 76 A conforming to EN/IEC 60947-7-185 A CSA85 A UL |
| Material: | Polyamide 6/6: insulating caseCopper alloy: connector and screwCopper alloy: commoning linkChromium-nickel steel: spring |
| Dielectric loss: | 0.01 at 1 MHz conforming to IEC 602500.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant: | 3.7 at 1 MHz |
| Resistivity: | 10000 M?.m conforming to IEC 6009310000 M?.m conforming to VDE 0303-T30 |
| Surface resistance: | 1000 G? conforming to IEC 600931000 G? conforming to VDE 0303-T30 |
| Creep resistance: | 500 CTI (> 400 kB) conforming to IEC 60093500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance: | V0, thickness0.8 mm conforming to UL 94 |
| Product weight: | 37 g |
| Range compatibility: | PrismaSeT GPrismaSeT PPrismaSet HDPrismaSeT Pack 250PanelSeTMurevaPrismaSeT XSTeSys |
| Product compatibility: | Spacial enclosures |
| Compatibility code: | Terminal block |
| Product certifications: | GLDNVVDECSAUL |
|---|---|
| Dielectric strength: | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation: | -40...130 °C conforming to IEC 60216-1-40...130 °C conforming to VDE 0304-T21 |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope)Environmental Disclosure |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480532863 |
|---|
