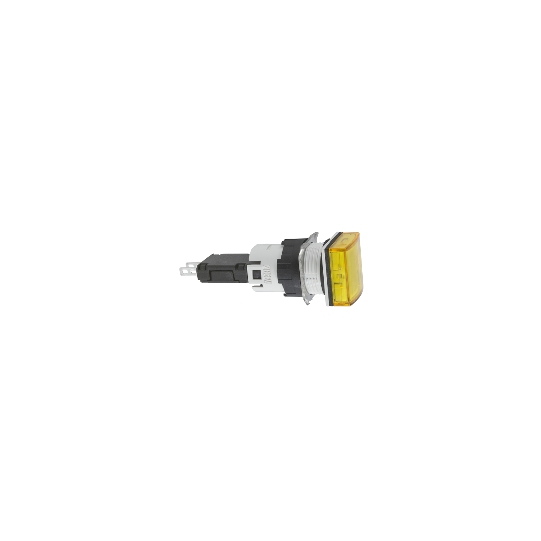

square yellow complete pilot light Ø16 with integral LED 12...24V - XB6CV5BB
SKU : XB6CV5BB
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
square yellow complete pilot light Ø16 with integral LED 12...24V - XB6CV5BB
DESCRIPTION
| Range of product: | Harmony XB6 |
|---|---|
| Product or component type: | Complete pilot light |
| Device short name: | XB6 |
| Bezel material: | Plastic |
| Mounting diameter: | 16 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Square |
| Cap/operator or lens colour: | Yellow |
| Light source: | LED |
| Bulb base: | Integral LED |
| Light block supply: | Direct |
| [Us] rated supply voltage: | 12...24 V AC/DC |
| Height: | 18 mm |
|---|---|
| Width: | 18 mm |
| Depth: | 57 mm |
| Terminals description ISO n°1: | (+ -)PL |
| Product weight: | 0.015 kg |
| Operating position: | Any position |
| Connections - terminals: | Faston connectors, connection size: 2.8 x 0.5 mm |
| [Ui] rated insulation voltage: | 250 V (pollution degree 2) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-1 |
| Signalling type: | Steady |
| Supply voltage limits: | 6...30 V AC/DC |
| Current consumption: | 15 mA |
| Surge withstand: | 1 kV direct contact conforming to IEC 61000-4-52 kV in free air conforming to IEC 61000-4-5 |
| Compatibility code: | XB6 |
| Protective treatment: | TC |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Electrical shock protection class: | Class II conforming to IEC 61140 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 13 conforming to UL 50NEMA 4 conforming to UL 50NEMA 4X conforming to UL 50NEMA 13 conforming to CSA C22.2 No 94NEMA 4 conforming to CSA C22.2 No 94NEMA 4X conforming to CSA C22.2 No 94 |
| Standards: | JIS C8201-5-1EN/IEC 60947-5-5EN/IEC 60947-1UL 508JIS C 852CSA C22.2 No 14EN/IEC 60947-5-1JIS C8201-1 |
| Product certifications: | CSAULGOSTCCC |
| Vibration resistance: | +/- 3 mm (f= 2...500 Hz) conforming to IEC 60068-2-65 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to EN 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110764536 |
|---|
