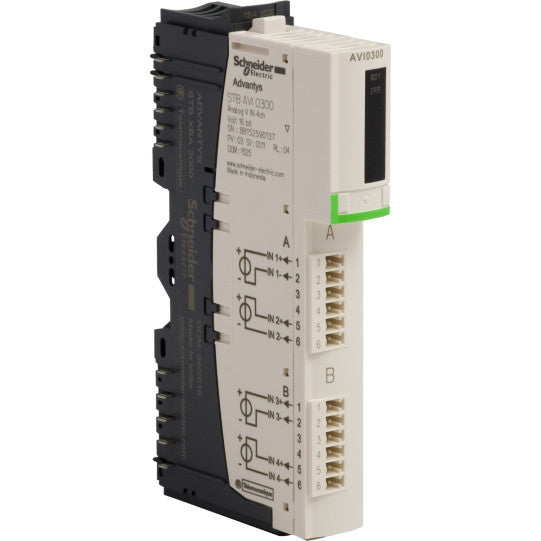

standard analog input kit STB - +/- 10 V - 4 I - 15 bits + sign - STBAVI0300K
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard analog input kit |
| Kit composition: | STBAVI0300 moduleSTBXTS1100, 6-terminal screw type connectorSTBXTS2100, 6-terminal spring clamp connectorSTBXBA1000 base |
| Analogue input type: | Voltage +/- 10 VVoltage +/- 5 VVoltage 0...10 VVoltage 0...5 VVoltage 1...5 V |
| Analogue input number: | 4 |
| Analogue input resolution: | 15 bits + sign |
| Type of filter: | Single low pass input filter 25 Hz |
| Absolute maximum input: | 50 V DC |
|---|---|
| Cold swapping: | Yes |
| Hot swapping fallback: | Yes for standard NIMs |
| Fallback status: | State 0 basic NIMsUser configurable standard NIMs |
| Data format: | EN 61131-2IEC 61131-2 |
| Integral linearity: | +/- 0.2 %FS |
| Differential linearity: | Monotonic |
| Input impedance: | 400 kOhm |
| Maximum supply current for sensors: | 100 mA per input channels |
| Maximum source impedance: | 1 kOhm |
| Absolute accuracy error: | +/- 0.75 % of full scale 25 °C |
| Temperature drift: | +/-0.01 %/°C |
| Insulation between channels and logic bus: | 1500 V for 1 minute |
| Insulation between channels and sensor bus: | 30 V |
| Addressing requirement: | 2 input words |
| Product compatibility: | Mounting base STBXBA1000Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage: | 24 V DC |
| Supply: | Power distribution module |
| Current consumption: | 90 mA at 5 V DC for logic bus |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green)module status (RDY)1 LED (red)module error (ERR) |
| Product certifications: | FM Class 1 Division 2ULCSAATEX Cat 3GC-Tick |
|---|---|
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to EN 61131-2 class 1 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for operation: | - 13...158 °F without derating |
| Ambient air temperature for storage: | -40...85 °C without derating |
| Ambient air temperature for storage: | -40...185 °F without derating |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | +/-0.35 mm at 10...58 Hz3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595863948707 |
|---|
