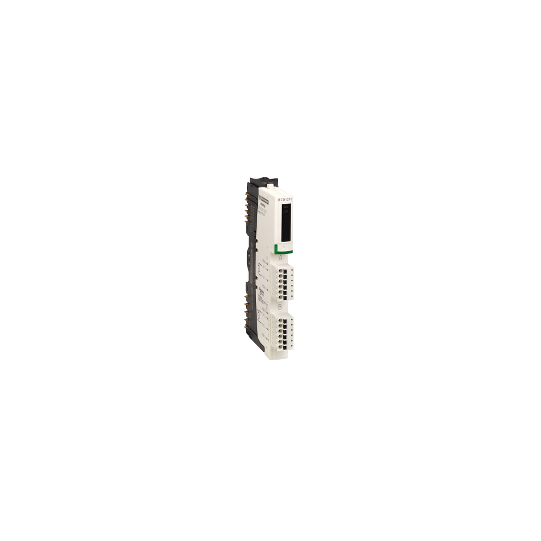

standard analog output kit STB - 0..20 mA - 2 O - 12 bits - STBACO1210K
SKU : STBACO1210K
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard analog output kit STB - 0..20 mA - 2 O - 12 bits - STBACO1210K
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard analog output kit |
| Kit composition: | STBXTS1100, 6-terminal screw type connectorSTBACO1210 moduleSTBXBA1000 baseSTBXTS2100, 6-terminal spring clamp connector |
| Analogue output type: | Current: 0...20 mA |
| Analogue output number: | 2 |
| Analogue output resolution: | 12 bits |
| Analogue output current: | 0.02 A |
|---|---|
| Response time: | 3 ms |
| Cold swapping: | Yes |
| Hot swapping fallback: | Yes for standard NIMs |
| Fallback status: | State 0 basic NIMsUser configurable standard NIMs |
| Data format: | EN 61131-2IEC 61131-2 |
| Update time: | 25 ms |
| Conversion time: | 900 ms at +/- 0.1 % of final value |
| Protection type: | Short-circuit protection |
| Integral linearity: | +/- 0.1 %FS |
| Differential linearity: | Monotonic |
| Absolute accuracy error: | +/- 0.5 % of full scale per °C |
| Temperature drift: | +/-0.01 %/°C |
| Insulation between channels and logic bus: | 1500 V for 1 minute |
| Insulation between channels and actuator bus: | 30 V |
| Addressing requirement: | 2 output words1 word for configuring fallback status |
| Product compatibility: | Mounting base STBXBA1000Power distribution module STBPDT3100/3105 |
| [Us] rated supply voltage: | 24 V DC |
| Supply: | Power distribution module |
| Current consumption: | 40 mA at 5 V DC for logic bus |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green) module status (RDY)1 LED (red) module error (ERR) |
| Depth: | 70 mm |
| Height: | 13.9 mm |
| Width: | 128.3 mm |
| Net weight: | 0.117 kg |
| Product certifications: | FM Class 1 Division 2ULCSA |
|---|---|
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation: | 0...60 °C (without) |
| Ambient air temperature for operation: | 32...140 °F without |
| Ambient air temperature for storage: | -40...85 °C without |
| Ambient air temperature for storage: | -40...185 °F without |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | 3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail+/-0.35 mm at 10...58 Hz |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3595863948776 |
|---|
