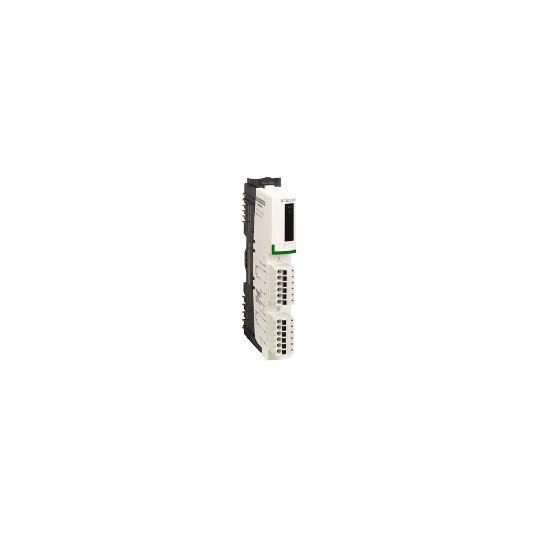

standard analog output kit STB - 4..20 mA - 2 O - 15 bits + sign - STBACO0220K
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard analog output kit |
| Kit composition: | STBXTS2100, 6-terminal spring clamp connectorSTBXTS1100, 6-terminal screw type connectorSTBXBA2000 baseSTBACO0220 module |
| Analogue output type: | Current: 4...20 mA |
| Analogue output number: | 2 |
| Analogue output resolution: | 15 bits + sign |
| Analogue output current: | 0.02 A |
|---|---|
| Response time: | 4 ms |
| Cold swapping: | Yes |
| Hot swapping fallback: | Yes for standard NIMs |
| Fallback status: | State 0 basic NIMsUser configurable standard NIMs |
| Data format: | EN 61131-2IEC 61131-2 |
| Update time: | 8 ms |
| Conversion time: | 4 ms for both channels |
| Integral linearity: | +/- 0.5 %FS |
| Differential linearity: | Monotonic |
| Absolute accuracy error: | +/- 0.3 % of full scale at 25 °C |
| Temperature drift: | +/-0.005 %/°C |
| Insulation between channels and logic bus: | 1500 V for 1 minute |
| Insulation between channels and actuator bus: | 200 V |
| Product compatibility: | Power distribution module STBPDT3100/3105Mounting base STBXBA1000 |
| [Us] rated supply voltage: | 24 V DC |
| Supply: | Power distribution module |
| Current consumption: | 210 mA at 5 V DC for logic bus |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green) module status (RDY)1 LED (red) module error (ERR) |
| Depth: | 70 mm |
| Height: | 18.4 mm |
| Width: | 128.3 mm |
| Product certifications: | CSAULFM Class 1 Division 2 |
|---|---|
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to EN 61131-2 class 1 |
| Ambient air temperature for operation: | 0...60 °C (without) |
| Ambient air temperature for operation: | 32...140 °F without |
| Ambient air temperature for storage: | -40...85 °C without |
| Ambient air temperature for storage: | -40...185 °F without |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | 3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail+/-0.35 mm at 10...58 Hz |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3595863948769 |
|---|
