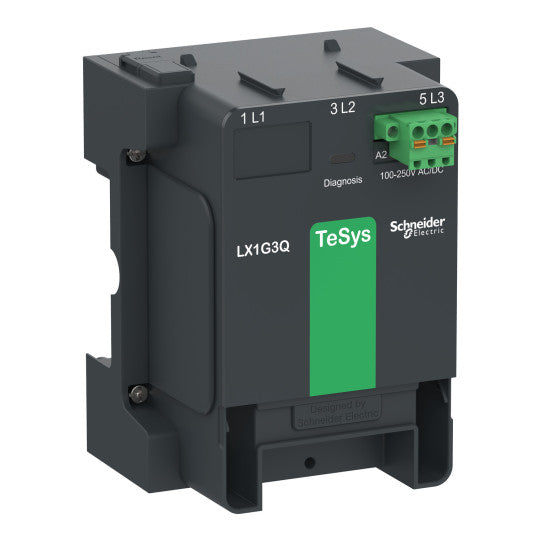

Standard Control Module 100-250V AC/DC for 3 Poles TeSys G115/225 - LX1G3QKUEN
SKU : LX1G3QKUEN
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Standard Control Module 100-250V AC/DC for 3 Poles TeSys G115/225 - LX1G3QKUEN
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product type or equipment: | Contactor coil |
| Device name: | LX1G |
| Pole description: | 4P |
| Range compatibility: | TeSys G LX1G contactor coil |
| Product compatibility: | LC1G115...225 |
| [Uc] control circuit voltage: | 100...250 V AC/DC 2 phases |
| Operating time: | 20...35 ms opening, 40...55 ms closing |
| Mechanical life: | 5 million cycles |
| Maximum switching speed: | 600 cyc/min at 60 °C |
| Coil technology: | Integrated bidirectional peak limitation |
| Control circuit voltage range: | Operational |
| Level loss: | 0...0.45 Uc (at 60 °C) |
| Connection method: | |
| Control circuit: | Push-in connection 1 wire 0.2?2.5 mm² stranded rigid without ferrule AWG 26...AWG 12 |
| Control circuit: | Push-in connection 1 wire 0.25?2.5 mm² flexible with ferrule AWG 24?AWG 14 |
| Control circuit: | Push-in connection 2 wires 0.5?1.0 mm² rigid or semi-rigid with ferrule AWG 20 to AWG 18 |
| Inrush power in VA: | 485 VA at 240 V DC, 50 Hz |
| Inrush power in W: | 365.0 W DC |
| Average holding consumption in VA: | 9.4 VA at 240 V DC, 50 Hz |
| Average holding consumption in W: | 5.2 W for DC network |
| Degree of protection IP: | IP20 in accordance with IEC 60529 |
|---|---|
| Operating altitude: | 3000 m without derating, 5000 m with derating factor |
| Electromagnetic compatibility: | EMC immunity in accordance with IEC 60947-4-1, Emission tests criterion A in accordance with IEC 60947-4-1 |
| Immunity to radiated electromagnetic interference: | Test level |
| Immunity to voltage dips and interruptions: | In accordance with SEMI F47 |
| Standards: | EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1 |
| Degree of pollution: | 3 in accordance with IEC 60947-1 |
| Ambient operating temperature: | -25?60 °C |
| Ambient storage temperature: | -60?80 °C |
| Ambient temperature around the device: | -40?70 °C at Uc |
| Height: | 144.5 mm |
| Width: | 105.7 mm |
| Depth: | 94 mm |
| Quantity per pack: | 1 |
| Degré de protection IP: | IP20 se conformer à CEI 60529 |
|---|---|
| Altitude de fonctionnement: | 3000 m sans déclassement5000 m avec facteur de réduction |
| Compatibilité électromagnétique: | Immunité CEM conforming to CEI 60947-4-1Tests d'émission critère A conforming to CEI 60947-4-1Immunité contre les interférences radio-électriques rayonnées - test level: 20 V/m conforming to EN/CEI 61000-4-3Test d'immunité aux baisses et aux interruptions de tension conforming to SEMI F47 |
| Normes: | EN/CEI 60947-4-1UL 60947-4-1ACSA C22.2 No 60947-4-1 |
| Degré de pollution: | 3 se conformer à CEI 60947-1 |
| Température de l'air ambiant en fonctionnement: | -25...60 °C |
| Température ambiante de stockage: | -60...80 °C |
| Température ambiante autour de l'appareil: | -40...70 °C à Uc |
| Hauteur: | 144,5 mm |
| Largeur: | 105,7 mm |
| Profondeur: | 94,0 mm |
| Quantité du lot: | 1 |
| Statut environnemental de l'offre: | Produit Green PremiumRégulation REACh |
| Type d'emballage 1: | Nb produits dans l'emballage 1 |
| Code EAN: | 3606481946294 |
|---|---|
| Rappels: | Ce produit Schneider LX1G3QKUEN est de type de la gamme TeSys F. |
