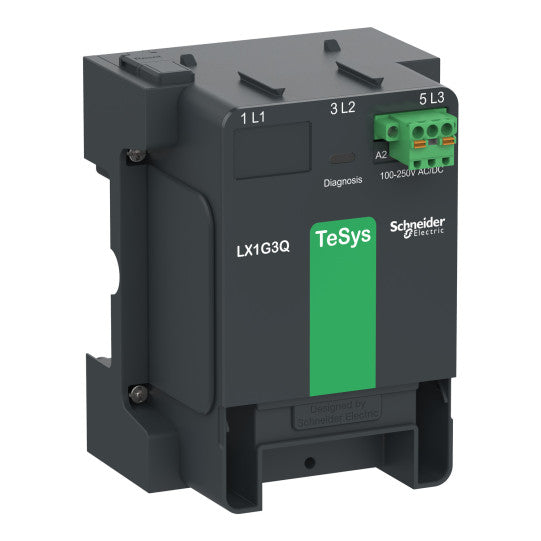

Standard Control Module 100-250V AC/DC for 3 Poles TeSys G265/300 - LX1G3RKUEN
SKU : LX1G3RKUEN
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Standard Control Module 100-250V AC/DC for 3 Poles TeSys G265/300 - LX1G3RKUEN
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product or equipment type: | Contactor coil |
| Device name: | LX1G |
| Pole description: | 4P |
| Range compatibility: | TeSys G LX1G contactor coil |
| Product compatibility: | LC1G265...330 |
| [Uc] control circuit voltage: | 100...250 V AC/DC 2 phases |
| Operating time: | 20?35 ms opening, 40?55 ms closing |
| Mechanical lifetime: | 5 M cycles |
| Maximum control speed: | 600 cyc/min at 60 °C |
| Coil technology: | Integrated bidirectional peak limitation |
| Control circuit voltage range: | Operational |
| Level loss: | 0...0.45 Uc (at 60 °C) |
| Connection method: | |
| Control circuit: | push-in connection 1 cable(s) 0.2...2.5 mm² twisted stranded rigid without terminal AWG 26...AWG 12 |
| Control circuit: | push-in connection 1 cable(s) 0.25...2.5 mm² flexible with terminal AWG 24...AWG 14 |
| Control circuit: | push-in connection 2 cable(s) 0.5...1.0 mm² rigid or semi-rigid with terminal AWG 20 to AWG 18 |
| Inrush power in VA: | 840 VA at 240 V DC, 60 Hz |
| Inrush power in W: | 645.0 W DC |
| Average holding consumption in VA: | 10.6 VA at 240 V DC, 60 Hz |
| Average holding consumption in W: | 5.9 W for DC network |
| IP Protection Degree: | IP20 in compliance with IEC 60529 |
|---|---|
| Operating Altitude: | 3000 m without derating, 5000 m with derating factor |
| Electromagnetic Compatibility: | EMC Immunity according to IEC 60947-4-1, Emission tests criterion A according to IEC 60947-4-1 |
| Immunity against radiated radio-frequency interference: | Test level |
| Immunity to voltage dips and interruptions: | Compliant with SEMI F47 |
| Standards: | EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1 |
| Pollution Degree: | 3 in accordance with IEC 60947-1 |
| Ambient Operating Temperature: | -25?60 °C |
| Ambient Storage Temperature: | -60?80 °C |
| Ambient Temperature Around the Device: | -40?70 °C at Uc |
| Height: | 167 mm |
| Width: | 140 mm |
| Depth: | 93 mm |
| Lot Quantity: | 1 |
| Degré de protection IP: | IP20 se conformer à CEI 60529 |
|---|---|
| Altitude de fonctionnement: | 3000 m sans déclassement5000 m avec facteur de réduction |
| Compatibilité électromagnétique: | Immunité CEM conforming to CEI 60947-4-1Tests d'émission critère A conforming to CEI 60947-4-1Immunité contre les interférences radio-électriques rayonnées - test level: 20 V/m conforming to EN/CEI 61000-4-3Test d'immunité aux baisses et aux interruptions de tension conforming to SEMI F47 |
| Normes: | EN/CEI 60947-4-1UL 60947-4-1ACSA C22.2 No 60947-4-1 |
| Degré de pollution: | 3 se conformer à CEI 60947-1 |
| Température de l'air ambiant en fonctionnement: | -25...60 °C |
| Température ambiante de stockage: | -60...80 °C |
| Température ambiante autour de l'appareil: | -40...70 °C à Uc |
| Hauteur: | 167,0 mm |
| Largeur: | 140,0 mm |
| Profondeur: | 93,0 mm |
| Quantité du lot: | 1 |
| Statut environnemental de l'offre: | Produit Green PremiumRégulation REACh |
| Type d'emballage 1: | Nb produits dans l'emballage 1 |
| Code EAN: | 3606481946317 |
|---|---|
| Rappels: | Ce produit de la marque Schneider LX1G3RKUEN est de type de la gamme TeSys F. |
