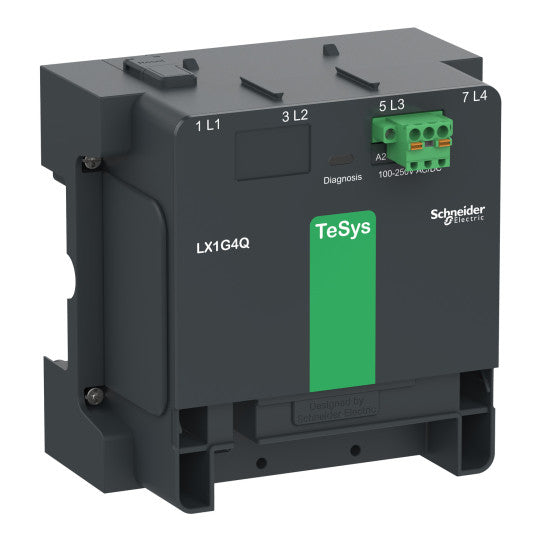

Standard Control Module 100-250V AC/DC for 4 Poles TeSys G115/225 - LX1G4QKUEN
SKU : LX1G4QKUEN
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Standard Control Module 100-250V AC/DC for 4 Poles TeSys G115/225 - LX1G4QKUEN
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product or equipment type: | Contactor coil |
| Device name: | LX1G |
| Pole description: | 4P |
| Range compatibility: | TeSys G LX1G contactor coil |
| Product compatibility: | LC1G115...225 |
| [Uc] control circuit voltage: | 100...250 V AC/DC 2 phases |
| Operating time: | 20...35 ms opening, 40...55 ms closing |
| Mechanical lifespan: | 5 M cycles |
| Maximum control speed: | 600 cycles/min at 60 °C |
| Coil technology: | Integrated bidirectional peak limitation |
| Control circuit voltage range: | Operational |
| Level loss: | 0...0.45 Uc (at 60 °C) |
| Connection method: | |
| Control circuit: | Push-in connection 1 cable(s) 0.2?2.5 mm² stranded rigid without terminal AWG 26...AWG 12 |
| Control circuit: | Push-in connection 1 cable(s) 0.25?2.5 mm² flexible with terminal AWG 24?AWG 14 |
| Control circuit: | Push-in connection 2 cable(s) 0.5?1.0 mm² rigid or semi-rigid with terminal AWG 20 to AWG 18 |
| Inrush power in VA: | 485 VA at 240 V DC, 50 Hz |
| Inrush power in W: | 365.0 W DC |
| Average holding consumption in VA: | 9.4 VA at 240 V DC, 50 Hz |
| Average holding consumption in W: | 5.2 W for DC network |
| IP protection degree: | IP20 conforming to IEC 60529 |
|---|---|
| Operating altitude: | 3000 m without derating, 5000 m with derating factor |
| Electromagnetic compatibility: | EMC immunity conforming to IEC 60947-4-1, Emission test criterion A conforming to IEC 60947-4-1 |
| Immunity to radiated radio-frequency interference: | Test level |
| Immunity to voltage dips and interruptions: | Conforming to SEMI F47 |
| Standards: | EN/IEC 60947-4-1, UL 60947-4-1A, CSA C22.2 No 60947-4-1 |
| Pollution degree: | 3 conforming to IEC 60947-1 |
| Operating ambient temperature: | -25?60 °C |
| Storage ambient temperature: | -60?80 °C |
| Ambient temperature around the device: | -40?70 °C at Uc |
| Height: | 144.5 mm |
| Width: | 140.7 mm |
| Depth: | 94 mm |
| Quantity per package: | 1 |
| Code EAN: | 3606481946492 |
|---|
