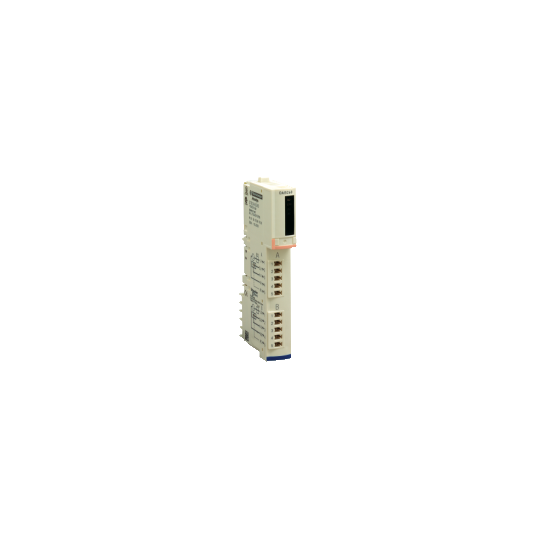

standard digital input kit STB - 115 V AC - 2 I - STBDAI5260K
SKU : STBDAI5260K
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard digital input kit STB - 115 V AC - 2 I - STBDAI5260K
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard digital input kit |
| Kit composition: | STBXTS1110, 5-terminal screw type connectorSTBXTS2110, 5-terminal spring clamp connectorSTBXBA2000 baseSTBDAI5260 module |
| Discrete input number: | 2 |
| Discrete input voltage: | 115 V |
| Discrete input voltage type: | AC |
| Input voltage limits: | 0...20 V at state 074...132 V at state 1 |
|---|---|
| Permissible voltage: | 132 V |
| Absolute maximum voltage: | 200 V 20 ms |
| Network frequency: | 50/60 Hz |
| Network frequency limits: | 47...63 Hz |
| Current state 0 guaranteed: | |
| Current state 1 guaranteed: | >= 4 mA |
| Discrete input logic: | Positive or negative |
| Response time: | 1.5 ms off-to-on1.5 ms on-to-off |
| Protection type: | Input protection metal oxide varistor limitedPower protection external fuse 0.5 A |
| Insulation between channels: | 1780 V for 1 minute |
| Insulation between channels and logic bus: | 1780 V for 1 minute |
| Cold swapping: | Yes |
| Hot swapping fallback: | Yes for standard NIMs |
| Product compatibility: | I/O base STBXBA2000Power distribution module STBPDT2100/2105 |
| [Us] rated supply voltage: | 115/230 V AC |
| Supply: | Power distribution module |
| Current consumption: | 45 mA at 5 V DC for logic bus |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green) module status (RDY)1 LED per channel (green) channel status (IN1 to IN2)1 LED (red) module error (ERR) |
| Depth: | 65.1 mm |
| Height: | 18.4 mm |
| Width: | 125 mm |
| Net weight: | 0.065 kg |
| Standards: | EN/IEC 61131-2 type 1 |
|---|---|
| Product certifications: | FM Class 1 Division 2ULCSA |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation: | 0...60 °C (without derating) |
| Ambient air temperature for operation: | 32...140 °F without derating |
| Ambient air temperature for storage: | -40...85 °C without derating |
| Ambient air temperature for storage: | -40...185 °F without derating |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | 3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail+/-0.35 mm at 10...58 Hz |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3595863948998 |
|---|
