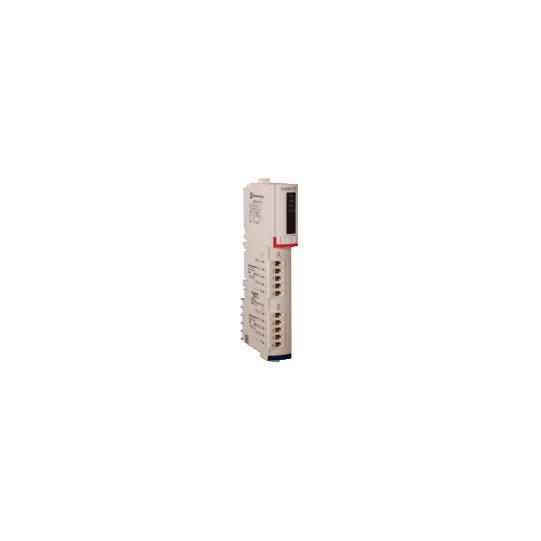

standard digital output kit - Modicon STB - 115..230 V AC - 2 O - STBDAO8210K
SKU : STBDAO8210K
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard digital output kit - Modicon STB - 115..230 V AC - 2 O - STBDAO8210K
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard digital output kit |
| Kit composition: | STBXTS1100, 5-terminal screw type connectorSTBDAO8210 moduleSTBXTS2110, 5-terminal spring clamp connectorSTBXBA2000 base |
| Discrete output number: | 2 |
| Discrete output type: | Triac |
| Discrete output voltage: | 115...230 V |
| Discrete output voltage type: | AC |
| Discrete output current: | 1000 mA 60 °C2000 mA 30 °C |
|---|---|
| Discrete output logic: | Positive or negative |
| Output voltage: | 20...265 V AC |
| Absolute maximum voltage: | 300 V 10 s400 V 20 ms |
| Response time: | 10 ms off-to-on10.5 ms on-to-off |
| Cold swapping: | Yes |
| Hot swapping fallback: | Yes for standard NIMs |
| Fallback status: | State 0 basic NIMsUser configurable standard NIMs |
| Protection type: | Output surge protection varistance and RC circuit |
| Insulation between channels and logic bus: | 1780 V for 1 minute |
| Maximum leakage current: | 2 mA at state 0 115 V2.5 mA at state 0 230 V |
| Surge current: | 20 A 40 ms30 A 20 ms |
| Minimum load: | 5 mA |
| Reset: | Manual or automatic reset COM fault |
| Product compatibility: | I/O base STBXBA2000Power distribution module STBPDT2100/2105 |
| Supply: | Power distribution module |
| Current consumption: | 45 mA at 5 V DC for logic bus |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green) module status (RDY)1 LED per channel (green) channel status (OUT1 to OUT2)1 LED (red) module error (ERR) |
| Height: | 18.4 mm |
| Depth: | 70 mm |
| Width: | 128.3 mm |
| Net weight: | 0.125 kg |
| Standards: | IEC 61131-2 |
|---|---|
| Product certifications: | ULCSAFM Class 1 Division 2 |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation: | 0...60 °C (without derating) |
| Ambient air temperature for operation: | 32...140 °F without derating |
| Ambient air temperature for storage: | -40...85 °C without derating |
| Ambient air temperature for storage: | -40...185 °F without derating |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | 3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail+/-0.35 mm at 10...58 Hz |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3595863988925 |
|---|
