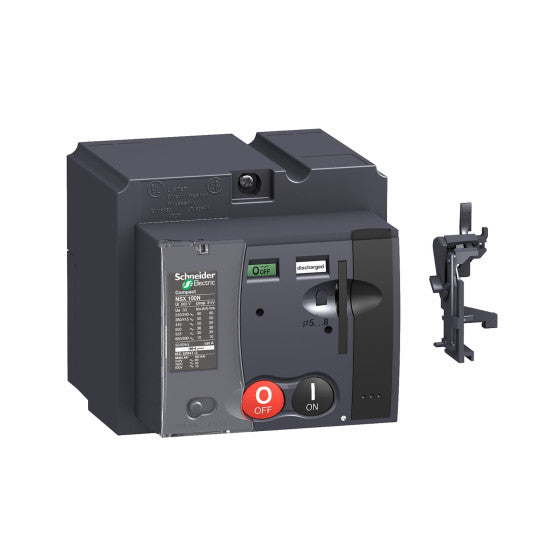

standard motor mechanism module MT100/160, ComPact NSX100/160, 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz - LV429434
SKU : LV429434
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard motor mechanism module MT100/160, ComPact NSX100/160, 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz - LV429434
DESCRIPTION
| Range of product: | ComPacT NSX100...250 new generationComPacT NSX100...250 DC new generationComPact NSX100...250ComPact NSX100...250 DC |
|---|---|
| Range: | ComPacT |
| Device short name: | MT250 |
| Product or component type: | Motor mechanism |
| Device application: | Automatic spring charging |
| Range compatibility: | ComPacT NSX100 new generationComPacT NSX160 new generationComPact NSX100ComPact NSX160ComPacT NSX DC new generation NSX100 DCComPacT NSX DC new generation NSX160 DC Compact NSX100 DC Compact NSX160 DCPowerPact MultistandardEasyPact CVS250PowerPact JPowerPact H |
| Control type: | Standard |
| [Uc] control circuit voltage: | 208...277 V AC 60 Hz220...240 V AC 50/60 Hz |
| Mounting mode: | Fixed |
| [In] rated current: | 160 A100 A |
| Control signal type: | ImpulseMaintained |
|---|---|
| Response time: | |
| Maximum operating frequency: | 4 per minute |
| Maximum power consumption in VA: | 500 VA closing500 VA opening |
| Provided equipment: | SDE adaptor |
| Locking options description: | Padlocking in OFF position1 to 3 padlocks Ø 5 to Ø 8 |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP110911EN |
| Circularity Profile: | ENVEOLI1109011EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3606480020001 |
|---|
