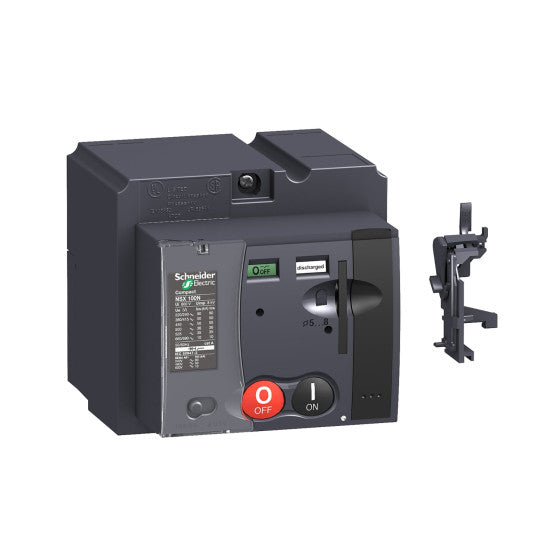

standard motor mechanism module MT250, ComPact NSX250, 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz - LV431541
SKU : LV431541
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard motor mechanism module MT250, ComPact NSX250, 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz - LV431541
DESCRIPTION
| Range of product: | ComPacT NSX100...250 new generationComPacT NSX100...250 DC new generationComPact NSX100...250ComPact NSX100...250 DC |
|---|---|
| Range: | ComPacT |
| Device short name: | MT250 |
| Product or component type: | Motor mechanism |
| Device application: | Automatic spring charging |
| Range compatibility: | ComPacT NSX250 new generationComPact NSX250ComPacT NSX DC new generation NSX250 DC Compact NSX250 DCPowerPact MultistandardEasyPact CVS250PowerPact JPowerPact H |
| Control type: | Standard |
| [Uc] control circuit voltage: | 208...277 V AC 60 Hz220...240 V AC 50/60 Hz |
| Mounting mode: | Fixed |
| [In] rated current: | 250 A |
| Control signal type: | MaintainedImpulse |
|---|---|
| Response time: | |
| Maximum operating frequency: | 4 per minute |
| Maximum power consumption in VA: | 500 VA closing500 VA opening |
| Provided equipment: | SDE adaptor |
| Locking options description: | 1 to 3 padlocks Ø 5 to Ø 8Padlocking in OFF position |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP110911EN |
| Circularity Profile: | ENVEOLI1109011EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3606480020087 |
|---|
