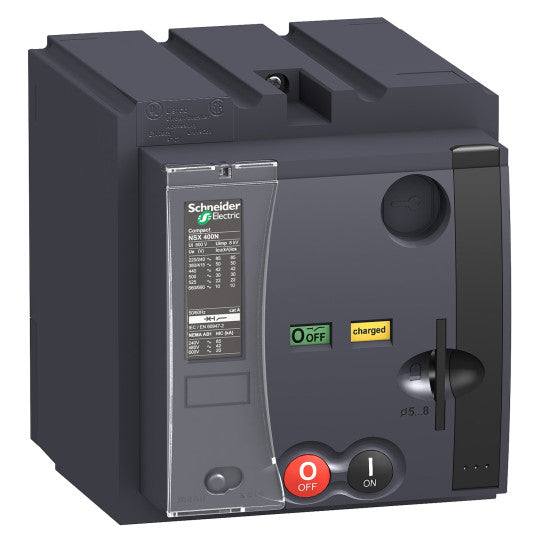

standard motor mechanism module MT400/630, ComPact NSX400/630, 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz - LV432641
SKU : LV432641
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard motor mechanism module MT400/630, ComPact NSX400/630, 220/240 VAC 50/60 Hz, 208/277 VAC 60 Hz - LV432641
DESCRIPTION
| Range of product: | ComPacT NSX400...630 new generationComPacT NSX400...630 DC new generationComPact NSX400...630ComPact NSX400...630 DC |
|---|---|
| Range: | ComPacT |
| Device short name: | MT400/630 |
| Product or component type: | Motor mechanism |
| Device application: | Automatic spring charging |
| Range compatibility: | ComPacT NSX400 new generationComPacT NSX630 new generationComPact NSX400ComPact NSX630ComPacT NSX DC new generation NSX400 DCComPacT NSX DC new generation NSX630 DC Compact NSX400 DC Compact NSX630 DCPowerPact MultistandardEasyPact CVS400EasyPact CVS630PowerPact L |
| Control type: | Standard |
| [Uc] control circuit voltage: | 208...277 V AC 60 Hz220...240 V AC 50/60 Hz |
| Mounting mode: | Fixed |
| [In] rated current: | 400 A630 A |
| Control signal type: | ImpulseMaintained |
|---|---|
| Response time: | |
| Maximum operating frequency: | 4 per minute |
| Maximum power consumption in VA: | 500 VA closing500 VA opening |
| Locking options description: | Padlocking in OFF position1 to 3 padlocks Ø 5 to Ø 8 |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP111247EN |
| Circularity Profile: | ENVEOLI111002EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3606480020179 |
|---|
