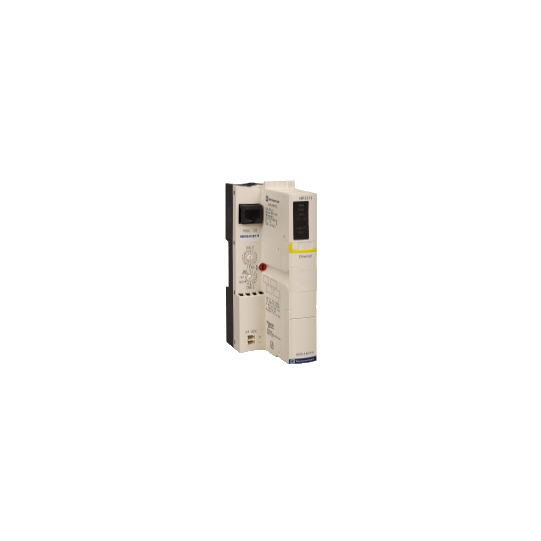

standard Network Interface Module STB - Ethernet - 10 Mbit/s - STBNIP2212
SKU : STBNIP2212
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard Network Interface Module STB - Ethernet - 10 Mbit/s - STBNIP2212
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard Network Interface Module |
| Concept: | Transparent Ready |
| Port Ethernet: | 10BASE-T |
| Number of segments: | 1 primary, maximum 6 extensions |
| Number of devices per segment: | 0...256 |
| Transmission rate: | 10 Mbit/s for bus length of 3000 m with fiber optic connection10 Mbit/s for bus length of 0...100 m according to 802.3 standard10 Mbit/s for bus length of 0...1000 m with ConneXium cabling system |
| Structure type: | Industrial LAN |
| Number of addressable I/O module: | 0...32 per island |
|---|---|
| Communication service: | SNMP agentModbus TCP/IP messagingEmbedded web (configuration,diagnostics and access to variable)BootP/DHCP protocol |
| [Us] rated supply voltage: | 24 V DC |
| Power supply type: | SELV |
| Maximum supply current: | 700 A |
| Supply voltage limits: | 19.2...30 V |
| Input current: | 430 mA for supply circuit |
| Nominal output current: | 0.575 A at 60...70 °C1.2 A |
| Output voltage: | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green) status1 LED (green) 10T1 LED (green) island state (RUN)1 LED (green) power supply (PWR)1 LED (red) module error (ERR)1 LED (yellow) test mode |
| Depth: | 70 mm |
| Height: | 128.3 mm |
| Width: | 40.5 mm |
| Net weight: | 0.13 kg |
| Electromagnetic compatibility: | Immunity to electromagnetic interference conforming to IEC 61131-2 |
|---|---|
| Product certifications: | CSAULFM Class 1 Division 2ATEX Cat 3GC-Tick |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to EN 61131-2 class 1 |
| Ambient air temperature for operation: | 0...60 °C (without derating)-25...70 °C (with derating factor) |
| Ambient air temperature for storage: | -40...85 °C |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | 3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail+/-0.35 mm at 10...58 Hz |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3595862055116 |
|---|
