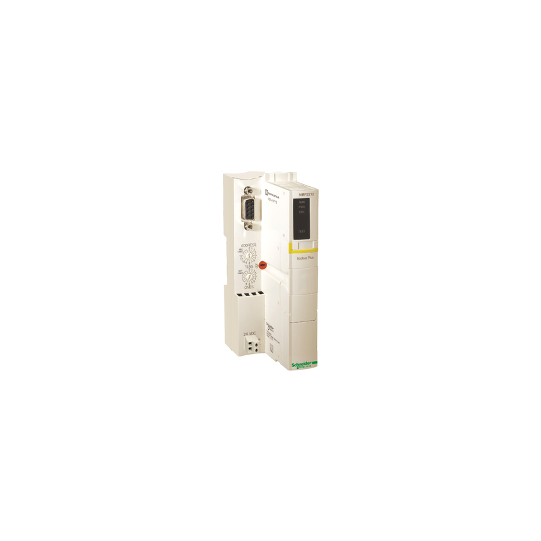

standard Network Interface Module STB - Modbus Plus - 1 Mbit/s - STBNMP2212
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard Network Interface Module |
| Integrated connection type: | Modbus Plus conforming to modbus.org 9-way female SUB-D connector 1 twisted pair (network)Modbus Plus conforming to modbus.org HE-13 (RS232 port)Modbus Plus conforming to modbus.org 8-way female (RS232 port) |
| Number of segments: | 1 primary, maximum 6 extensions |
| Number of devices per segment: | 0...32 per segment0...64 all segment |
| Transmission rate: | 1 Mbit/s for bus length of 0...1800 m per segment with 3 repeaters1 Mbit/s for bus length of 0...450 m per segment |
| Structure type: | Industrial LAN |
| Number of addressable I/O module: | 0...32 per island |
|---|---|
| Communication service: | Global DataPeer cop dialoguePeer to peer dialogue |
| [Us] rated supply voltage: | 24 V DC |
| Power supply type: | SELV |
| Maximum supply current: | 700 A |
| Supply voltage limits: | 19.2...30 V |
| Input current: | 430 mA for supply circuit |
| Nominal output current: | 0.575 A at 60...70 °C1.2 A |
| Output voltage: | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green) island state (RUN)1 LED (green) power supply (PWR)1 LED (red) module error (ERR)1 LED (yellow) MB+1 LED (yellow) test mode |
| Depth: | 70 mm |
| Height: | 40 mm |
| Width: | 128.3 mm |
| Net weight: | 0.145 kg |
| Electromagnetic compatibility: | Immunity to electromagnetic interference conforming to IEC 61131-2 |
|---|---|
| Product certifications: | CSAULFM Class 1 Division 2C-TickATEX Cat 3G |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation: | 0...60 °C (without derating)-25...70 °C (with derating factor) |
| Ambient air temperature for storage: | -40...85 °C |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | 3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail+/-0.35 mm at 10...58 Hz |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3595862055109 |
|---|
