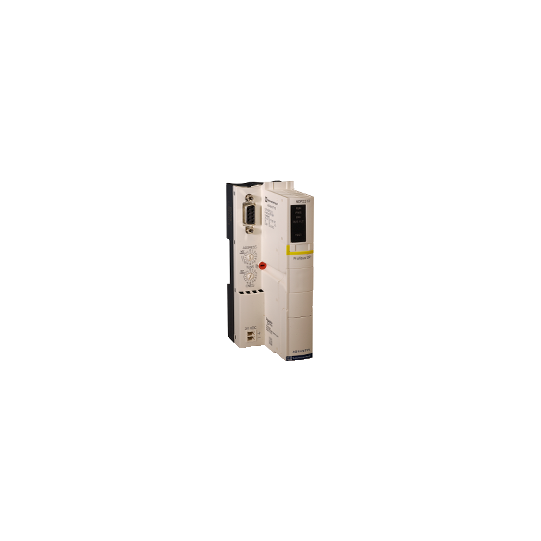

standard Network Interface Module STB - Profibus DP - 9.6 kbit/s - STBNDP2212
SKU : STBNDP2212
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard Network Interface Module STB - Profibus DP - 9.6 kbit/s - STBNDP2212
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard Network Interface Module |
| Integrated connection type: | Profibus DP conforming to DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair (bus)Profibus DP conforming to DIN 19245 part 1 and 3 HE-13 (RS232 port)Profibus DP conforming to DIN 19245 part 1 and 3 8-way female (RS232 port) |
| Number of segments: | 1 primary, maximum 6 extensions |
| Number of slave: | 125 |
| Transmission rate: | 12 Mbit/s for bus length of 0...800 m with 3 repeaters9.6 kbit/s for bus length of 0...4800 m with 3 repeaters12 Mbit/s for bus length of 0...200 m9.6 kbit/s for bus length of 0...1200 m |
| Structure type: | Industrial field bus DP V.0 |
| Number of addressable I/O module: | 0...32 per island |
|---|---|
| Communication service: | DiagnosticsRead/write DP slave I/O dataConfiguration controlSlave configuration |
| [Us] rated supply voltage: | 24 V DC |
| Power supply type: | SELV |
| Maximum supply current: | 700 A |
| Supply voltage limits: | 19.2...30 V |
| Input current: | 430 mA for supply circuit |
| Nominal output current: | 0.575 A at 60...70 °C1.2 A |
| Maximum output impedance: | 0.05 Ohm at 100000 kHz |
| Output voltage: | 5.25 V DC (tolerance: +/- 0.21 %) for logic bus |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green) BUSFLT1 LED (green) island state (RUN)1 LED (green) power supply (PWR)1 LED (red) module error (ERR)1 LED (yellow) test mode |
| Depth: | 70 mm |
| Height: | 40 mm |
| Width: | 128.3 mm |
| Electromagnetic compatibility: | Immunity to electromagnetic interference conforming to IEC 61131-2 |
|---|---|
| Product certifications: | C-TickCSAATEX Cat 3GFM Class 1 Division 2UL |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to IEC 61131-2 class 1 |
| Ambient air temperature for operation: | 0...60 °C (without derating)-25...70 °C (with derating factor) |
| Ambient air temperature for storage: | -40...85 °C |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | 3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail+/-0.35 mm at 10...58 Hz |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3595862055130 |
|---|
