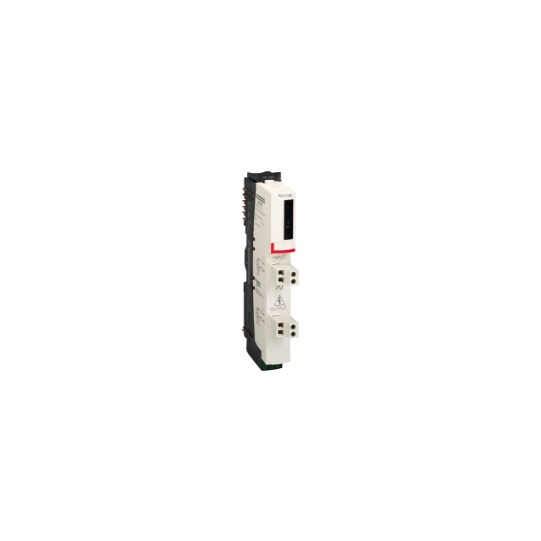

standard power distribution kit STB - 115..230 V AC - STBPDT2100K
SKU : STBPDT2100K
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
standard power distribution kit STB - 115..230 V AC - STBPDT2100K
DESCRIPTION
| Range of product: | Modicon STB distributed I/O solution |
|---|---|
| Product or component type: | Standard power distribution kit |
| Kit composition: | STBPDT2100 moduleSTBXBA2200 baseSTBXTS2130, spring type connectorsSTBXTS1130, screw type connectors |
|---|---|
| [Us] rated supply voltage: | 115...230 V |
| Supply circuit type: | AC |
| Supply frequency: | 50...60 Hz |
| Power supply output current: | 0...10 A at 30 °C (output circuit)0...2.5 A at 60 °C (input circuit)0...5 A at 30 °C (input circuit)0...5 A at 60 °C (output circuit) |
| Voltage range: | 85...265 V AC sensor/actuator bus |
| Hot swapping fallback: | Hot swapping illegal |
| Protection type: | Built-in overcurrent protection, 10 A time-lag fuse for output circuitBuilt-in overcurrent protection, 5 A time-lag fuse for input circuit |
| Permissible current: | 30 A for 2 minutes grounding terminal |
| Voltage detection threshold: | > 70 V +/-5 AC IN/OUT LED lit |
| Product compatibility: | Mounting base STBXBA2200 |
| Marking: | CE |
| Overvoltage category: | II |
| Status LED: | 1 LED (green) actuator bus power supply (OUT)1 LED (green) sensor bus power supply (IN) |
| Depth: | 65.1 mm |
| Height: | 18.4 mm |
| Width: | 125 mm |
| Net weight: | 0.129 kg |
| Product certifications: | CSAFM Class 1 Division 2UL |
|---|---|
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Operating altitude: | |
| IP degree of protection: | IP20 conforming to EN 61131-2 class 1 |
| Ambient air temperature for operation: | 0...60 °C (without) |
| Ambient air temperature for storage: | -40...85 °C |
| Relative humidity: | 95 % at 60 °C without condensation |
| Vibration resistance: | +/-0.35 mm at 10...58 Hz3 gn at 58...150 Hz on 35 x 7.5 mm symmetrical DIN rail5 gn at 58...150 Hz on 35 x 15 mm symmetrical DIN rail |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3595863949186 |
|---|
