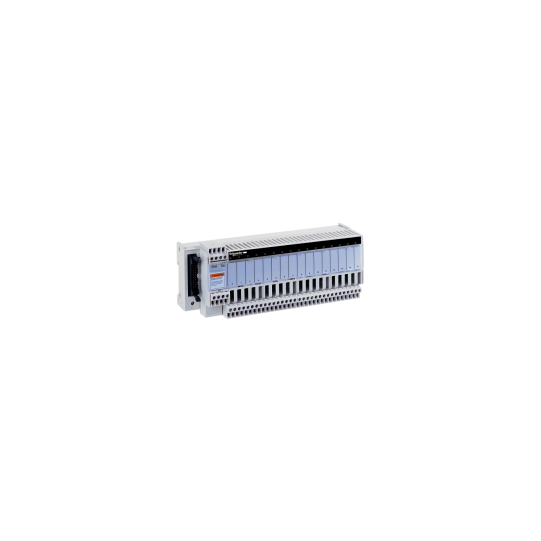

sub-base for plug-in relay ABE7 - 16 channels - relay 10 mm - ABE7P16T230
SKU : ABE7P16T230
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
sub-base for plug-in relay ABE7 - 16 channels - relay 10 mm - ABE7P16T230
DESCRIPTION
| Range of product: | Modicon ABE7 |
|---|---|
| Product or component type: | Sub-base for plug-in relay |
| Sub-base type: | Output sub-base |
| [Us] rated supply voltage: | 19...30 V conforming to IEC 61131-2 |
| Number of channels: | 16 |
| Connections - terminals: | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable endScrew type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solidScrew type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable endScrew type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable endScrew type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| Supply circuit type: | DC |
|---|---|
| Product compatibility: | ABE7ACC20ABS7SA2.ABR7S2.ABS7SC2. |
| Status LED: | 1 LED per channel (green) channel status1 LED (green) power ON |
| Polarity distribution: | Volt-free |
| Short-circuit protection: | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Fixing mode: | By clips (35 mm symmetrical DIN rail)By screws (solid plate with fixing kit) |
| Maximum supply current: | 1 A |
| Voltage drop on power supply fuse: | 0.3 V |
| Maximum current per output common: | 16 A |
| [Ui] rated insulation voltage: | 300 V coil circuit/contact circuits conforming to IEC 60947-12000 V terminals/mounting rails |
| [Uimp] rated impulse withstand voltage: | 2.5 kV |
| Installation category: | II conforming to IEC 60664-1 |
| Tightening torque: | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Net weight: | 0.655 kg |
| Product certifications: | CSADNVGLULEAC |
|---|---|
| IP degree of protection: | IP2X conforming to IEC 60529 |
| Resistance to incandescent wire: | 750 °C, extinction time |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance: | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge: | 4 kV (contact) level 3 conforming to IEC 61000-4-28 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields: | 10 V/m (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients: | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation: | -5...60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage: | -40...80 °C conforming to IEC 61131-2 |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110198065 |
|---|
