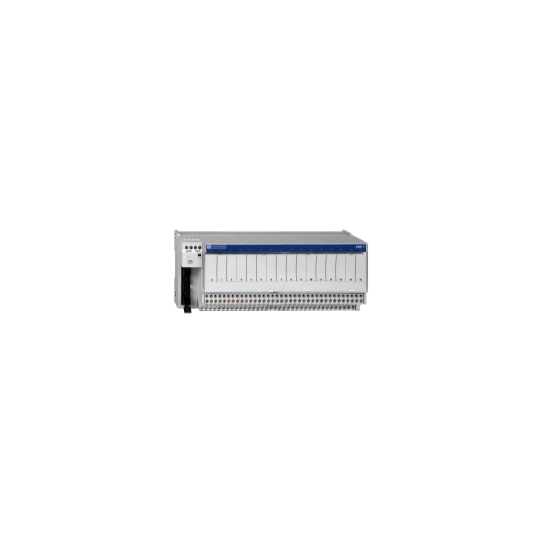

Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm - ABE7R16T230
SKU : ABE7R16T230
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm - ABE7R16T230
DESCRIPTION
| Range of product: | Modicon ABE7 |
|---|---|
| Product or component type: | Sub-base with plug-in electromechanical relay |
| Sub-base type: | Output sub-base |
| [Us] rated supply voltage: | 19...30 V conforming to IEC 61131-2 |
| Number of channels: | 16 |
| Supply circuit type: | DC |
|---|---|
| Product compatibility: | ABR7S23 |
| Contacts type and composition: | 1 C/O |
| Status LED: | 1 LED per channel (green)channel status1 LED (green)power ON |
| Polarity distribution: | Volt-free |
| Short-circuit protection: | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Fixing mode: | By clips (35 mm symmetrical DIN rail)By screws (solid plate with fixing kit) |
| Maximum supply current: | 1 A |
| Voltage drop on power supply fuse: | 0.3 V |
| [Ui] rated insulation voltage: | 2000 V terminals/mounting rails300 V coil circuit/contact circuits conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 2.5 kV |
| Installation category: | II conforming to IEC 60664-1 |
| Tightening torque: | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Product weight: | 0.775 kg |
| Product certifications: | ULBVGLDNVLROS (Lloyds register of shipping)CSAEAC |
|---|---|
| IP degree of protection: | IP2x conforming to IEC 60529 |
| Resistance to incandescent wire: | 750 °C conforming to IEC 60695-2-11 |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance: | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge: | 4 kV (contact) level 3 conforming to IEC 61000-4-28 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields: | 10 V/m (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients: | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation: | -5...60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage: | -40...80 °C conforming to IEC 61131-2 |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110644678 |
|---|
