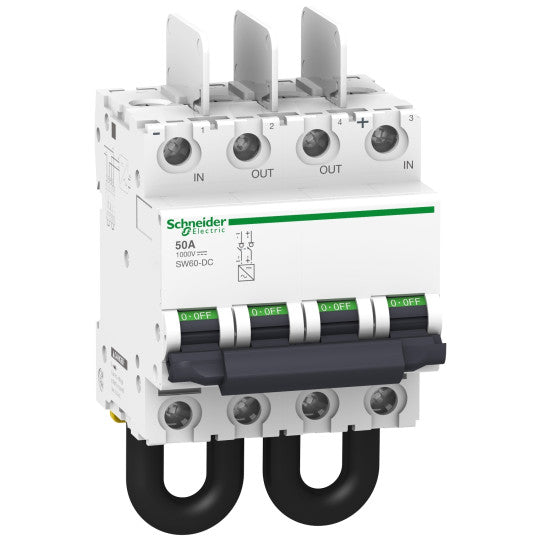

SW60-DC - 2P - 50 A - 1000 V - A9N61699
SKU : A9N61699
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
SW60-DC - 2P - 50 A - 1000 V - A9N61699
DESCRIPTION
| Switch application: | Photovoltaic inverter protection |
|---|---|
| Range of product: | SW60 |
| Product or component type: | Switch disconnector |
| Device short name: | SW60-DC |
| Poles description: | 2P |
| Utilisation category: | DC-21A |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-3 |
| [Ie] rated operational current: | 50 A DC-21A 1000 V DC 40 °C63 A DC-21A 1000 V DC 5 °C61 A DC-21A 1000 V DC 10 °C60 A DC-21A 1000 V DC 15 °C58 A DC-21A 1000 V DC 20 °C56 A DC-21A 1000 V DC 25 °C54 A DC-21A 1000 V DC 30 °C52 A DC-21A 1000 V DC 35 °C48 A DC-21A 1000 V DC 45 °C46 A DC-21A 1000 V DC 50 °C41 A DC-21A 1000 V DC 60 °C35 A DC-21A 1000 V DC 70 °C |
|---|---|
| Drop-out voltage: | 251 mV 5.02 mOhm 12.54 W 50 A |
| [Ui] rated insulation voltage: | 1000 V DC |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Control type: | Toggle |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 8 |
| Height: | 132.7 mm |
| Width: | 72 mm |
| Depth: | 77.4 mm |
| Product weight: | 0.53 kg |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 3000 cycles |
| Connections - terminals: | Tunnel terminal (upside) 1...35 mm² rigidTunnel terminal (upside) 1...25 mm² flexiblePre-wired cable (downside) |
| Tightening torque: | 3.5 N.m |
| Market segment: | ResidentialSmall commercial |
| Compatibility code: | SW60-DC |
| Standards: | EN/IEC 60947-3 |
|---|---|
| Pollution degree: | 2 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480504143 |
|---|
