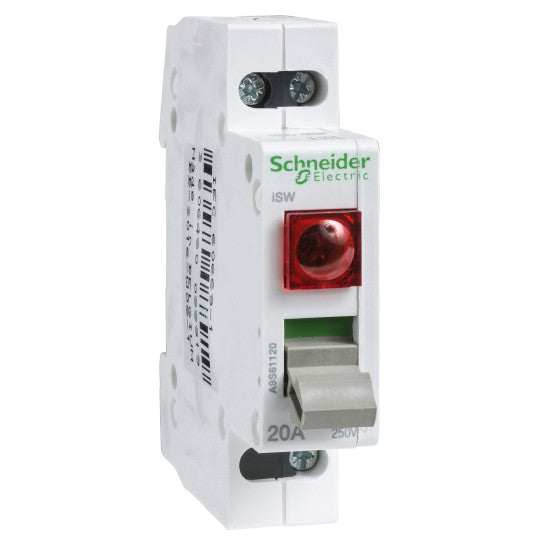

switch Acti9 iSW - 1 pole - 20 A - 250V - A9S61120
SKU : A9S61120
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
switch Acti9 iSW - 1 pole - 20 A - 250V - A9S61120
DESCRIPTION
| Range of product: | ISW 20...32 |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iSW |
| Product or component type: | Switch disconnector |
| Device short name: | ISW |
| Device application: | Control |
| Poles description: | 1P |
| Utilisation category: | AC-22A |
| Suitability for isolation: | Yes |
| [Ie] rated operational current: | 20 A at 250 V AC 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz |
| [Ui] rated insulation voltage: | 250 V AC 50/60 Hz conforming to EN/IEC 60669-2-4 |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication and lamp |
| Contact position indicator: | Yes |
| Signalling circuit voltage: | AC: 230 V 50/60 Hz |
| Mounting mode: | Fixed |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 77 mm |
| Width: | 18 mm |
| Depth: | 70 mm |
| Colour: | Grey |
| Mechanical durability: | 300000 cycles |
| Electrical durability: | 30000 cycles |
| Connections - terminals: | Tunnel type terminals - 10 mm² - rigidTunnel type terminals - 10 mm² - flexibleTunnel type terminals - 10 mm² - flexible with ferrule |
| Wire stripping length: | 9 mm |
| Tightening torque: | 1.2 N.m |
| Market segment: | Small commercial |
| Compatibility code: | ISW |
| Standards: | EN/IEC 60669-2-4 |
|---|---|
| IP degree of protection: | IP4 |
| Pollution degree: | 2 |
| Tropicalisation: | 2 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480088919 |
|---|
