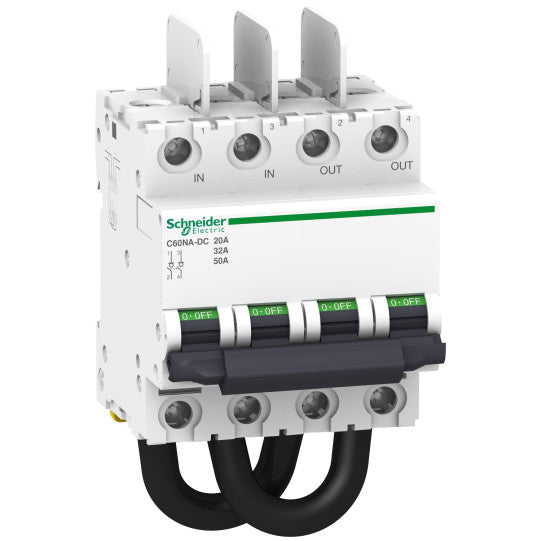

switch disconnector, Acti9 C60NA-DC, photovoltaic, 2P, 50A for 700VDC, 32A for 800VDC and 20A for 1000VDC - A9N61690
SKU : A9N61690
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
switch disconnector, Acti9 C60NA-DC, photovoltaic, 2P, 50A for 700VDC, 32A for 800VDC and 20A for 1000VDC - A9N61690
DESCRIPTION
| Switch application: | Photovoltaic PV arrayPhotovoltaic inverter protection |
|---|---|
| Range: | Acti 9 |
| Range of product: | C60 |
| Product or component type: | Switch disconnector |
| Product name: | C60 |
| Device short name: | C60NA-DC |
| Poles description: | 2P |
| Utilisation category: | DC-21B |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-3 |
| [Ie] rated operational current: | 20 A DC-21B 1000 V DC32 A DC-21B 800 V DC50 A DC-21B 700 V DC |
|---|---|
| Drop-out voltage: | 100 mV 5.02 mOhm 2 W 20 A151 mV 5.02 mOhm 4.53 W 30 A201 mV 5.02 mOhm 8.04 W 40 A251 mV 5.02 mOhm 12.55 W 60 A |
| [Ui] rated insulation voltage: | 1000 V DC |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 8 |
| Height: | 132.7 mm |
| Width: | 72 mm |
| Depth: | 77.4 mm |
| Product weight: | 0.545 kg |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 300 cycles |
| Connections - terminals: | Tunnel terminal (upside) 1...35 mm² rigidTunnel terminal (upside) 1...25 mm² flexiblePre-wired cable (downside) |
| Wire stripping length: | 14 mm |
| Tightening torque: | 3.5 N.m |
| Market segment: | ResidentialSmall commercial |
| Compatibility code: | C60NA-DC |
| Standards: | EN/IEC 60947-3 |
|---|---|
| Pollution degree: | 2 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480504136 |
|---|
