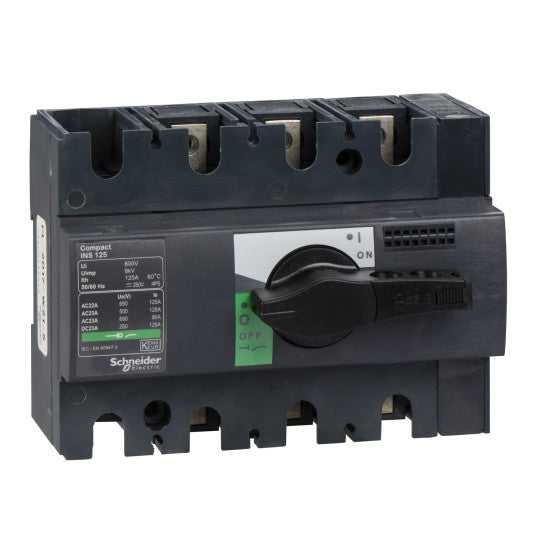

switch disconnector, Compact INS125 , 125 A, standard version with black rotary handle, 3 poles - 28910
SKU : 28910
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
switch disconnector, Compact INS125 , 125 A, standard version with black rotary handle, 3 poles - 28910
DESCRIPTION
| Range: | ComPact |
|---|---|
| Range of product: | INS40...160 |
| Product name: | Compact INS |
| Product or component type: | Switch disconnector |
| Device short name: | Compact INS125 |
| Switch-disconnector name: | Compact INS125 |
| Poles description: | 3P |
| Network type: | ACDC |
| Network frequency: | 50/60 Hz |
| [Ie] rated operational current: | AC-22A: 125 A AC 50/60 Hz 220/240 VAC-22A: 125 A AC 50/60 Hz 380/415 VAC-22A: 125 A AC 50/60 Hz 440/480 VAC-22A: 125 A AC 50/60 Hz 500 VAC-22A: 125 A AC 50/60 Hz 660/690 VAC-23A: 125 A AC 50/60 Hz 220/240 VAC-23A: 125 A AC 50/60 Hz 380/415 VAC-23A: 125 A AC 50/60 Hz 440/480 VAC-23A: 125 A AC 50/60 Hz 500 VAC-23A: 80 A AC 50/60 Hz 660/690 VDC-22A: 125 A DC 125 V 2 poles in seriesDC-23A: 125 A DC 125 V 2 poles in series |
| [Ui] rated insulation voltage: | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ith] conventional free air thermal current: | 125 A at 60 °C |
| [Icm] rated short-circuit making capacity: | 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz20 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage: | 125 V DC690 V AC 50/60 Hz |
| Suitability for isolation: | Yes |
| Contact position indicator: | Yes |
| Visible break: | No |
| Pollution degree: | 3 |
| Control type: | Rotary handle |
|---|---|
| Handle colour: | Black |
| Mounting mode: | Fixed |
| Mounting support: | DIN railPlate |
| Upside connection: | Front |
| Downside connection: | Front |
| Maximum power: | AC-23: 55 kW at 440 V AC 50/60 HzAC-23: 37 kW at 220/240 V AC 50/60 HzAC-23: 55 kW at 380/415 V AC 50/60 HzAC-23: 75 kW at 500/525 V AC 50/60 HzAC-23: 75 kW at 660/690 V AC 50/60 Hz |
| Rated duty: | Uninterrupted |
| Intermittent duty class: | Class 120 - 60 % |
| Enclosure dimensions for Ithe: | 260 mm x 160 mm x 55 mm |
| [Icw] rated short-time withstand current: | 0.01 kA during 30 s conforming to IEC 60947-31.23 kA during 20 s conforming to IEC 60947-33.175 kA during 3 s conforming to IEC 60947-35.5 kA during 1 s conforming to IEC 60947-3 |
| Mechanical durability: | 15000 cycles |
| Electrical durability: | AC-22A: 1500 cycles 220/240 V AC 50/60 HzAC-22A: 1500 cycles 380/415 V AC 50/60 HzAC-22A: 1500 cycles 440 V AC 50/60 HzAC-22A: 1500 cycles 500 V AC 50/60 HzAC-23A: 1500 cycles 220/240 V AC 50/60 HzAC-23A: 1500 cycles 380/415 V AC 50/60 HzAC-23A: 1500 cycles 440 V AC 50/60 HzAC-23A: 1500 cycles 500 V AC 50/60 HzDC-22A: 1500 cycles 250 V DC 2 poles in seriesDC-23A: 1500 cycles 250 V DC 2 poles in seriesAC-22A: 1500 cycles 690 V AC 50/60 HzAC-23A: 1500 cycles 690 V AC 50/60 Hz |
| Connection pitch: | 30 mm |
| Height: | 100 mm |
| Width: | 135 mm |
| Depth: | 62.5 mm |
| Product weight: | 0.8 kg |
| Compatibility code: | INS125 |
| Standards: | IEC 60947-1IEC 60947-3 |
|---|---|
| Product certifications: | CCCKEMA-KEUR |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to EN 50102 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430289104 |
|---|
