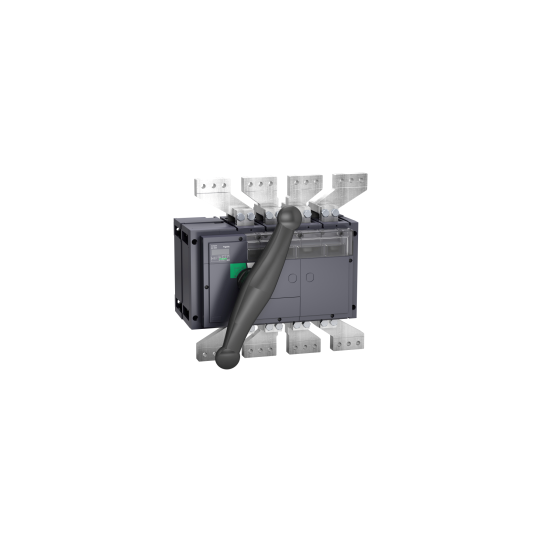

switch disconnector, Compact INV2500, visible break, 2500 A, standard version with black rotary handle, 4 poles - 31369
SKU : 31369
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
switch disconnector, Compact INV2500, visible break, 2500 A, standard version with black rotary handle, 4 poles - 31369
DESCRIPTION
| Range: | ComPact |
|---|---|
| Range of product: | INV630b...2500 |
| Product name: | ComPacT INS |
| Device short name: | Interpact INV2500 |
| Product or component type: | Switch disconnector |
| Switch-disconnector name: | Interpact INV2500 |
| Poles description: | 4P |
| Network type: | ACDC |
| Network frequency: | 50/60 Hz |
| [Ie] rated operational current: | AC-21B: 2500 A AC 50/60 Hz 220/240 VAC-21B: 2500 A AC 50/60 Hz 380/415 VAC-21B: 2500 A AC 50/60 Hz 440/480 VAC-21B: 2500 A AC 50/60 Hz 480 V NEMAAC-21B: 2500 A AC 50/60 Hz 500/525 VAC-21B: 2500 A AC 50/60 Hz 660/690 VAC-22B: 2500 A AC 50/60 Hz 220/240 VAC-22B: 2500 A AC 50/60 Hz 380/415 VAC-22B: 2500 A AC 50/60 Hz 440/480 VAC-22B: 2500 A AC 50/60 Hz 480 V NEMAAC-22B: 2500 A AC 50/60 Hz 500/525 VAC-22B: 2500 A AC 50/60 Hz 660/690 VDC-21B: 2500 A DC 125 V 2 poles in seriesDC-22B: 2500 A DC 125 V 2 poles in seriesDC-21B: 2500 A DC 250 V 4 poles in seriesDC-22B: 2500 A DC 250 V 4 poles in series |
| [Ui] rated insulation voltage: | 1000 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 12 kV |
| [Ith] conventional free air thermal current: | 2500 A at 60 °C |
| [Icm] rated short-circuit making capacity: | 105 kA switch-disconnector alone 690 V AC at 50/60 Hz105 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz250 V DC |
| Suitability for isolation: | Yes |
| Contact position indicator: | Yes |
| Visible break: | Yes |
| Pollution degree: | 3 |
| Control type: | Direct front rotary handle |
|---|---|
| Handle colour: | Black |
| Mounting mode: | Fixed |
| Mounting support: | RailPlate |
| Upside connection: | Front |
| Downside connection: | Front |
| Rated duty: | Uninterrupted |
| Intermittent duty class: | Class 120 - 60 % |
| [Icw] rated short-time withstand current: | 50 kA during 0.5 s conforming to IEC 60947-311 kA during 30 s conforming to IEC 60947-313 kA during 20 s conforming to IEC 60947-330 kA during 3 s conforming to IEC 60947-350 kA during 0.8 s conforming to IEC 60947-350 kA during 1 s conforming to IEC 60947-3 |
| Mechanical durability: | 3000 cycles |
| Electrical durability: | AC-21B: 100 cycles 220/240 V AC 50/60 HzAC-21B: 100 cycles 380/415 V AC 50/60 HzAC-21B: 100 cycles 440/480 V AC 50/60 HzAC-21B: 100 cycles 480 V AC 50/60 Hz conforming to NEMAAC-21B: 100 cycles 500/525 V AC 50/60 HzAC-21B: 100 cycles 660/690 V AC 50/60 HzAC-22B: 100 cycles 220/240 V AC 50/60 HzAC-22B: 100 cycles 380/415 V AC 50/60 HzAC-22B: 100 cycles 440/480 V AC 50/60 HzAC-22B: 100 cycles 480 V AC 50/60 Hz conforming to NEMAAC-22B: 100 cycles 500/525 V AC 50/60 HzAC-22B: 100 cycles 660/690 V AC 50/60 HzDC-21B: 100 cycles 125 V DC 2 poles in seriesDC-22B: 100 cycles 125 V DC 2 poles in seriesDC-21B: 100 cycles 250 V DC 4 poles in seriesDC-22B: 100 cycles 250 V DC 4 poles in series |
| Connection pitch: | 70 mm |
| Height: | 440 mm |
| Width: | 347.5 mm |
| Depth: | 227.5 mm |
| Net weight: | 45 kg |
| Compatibility code: | INV2500 |
| Standards: | IEC 60947-3IEC 60947-1 |
|---|---|
| Product certifications: | KEMA-KEUR |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to EN 50102 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3303430313694 |
|---|
