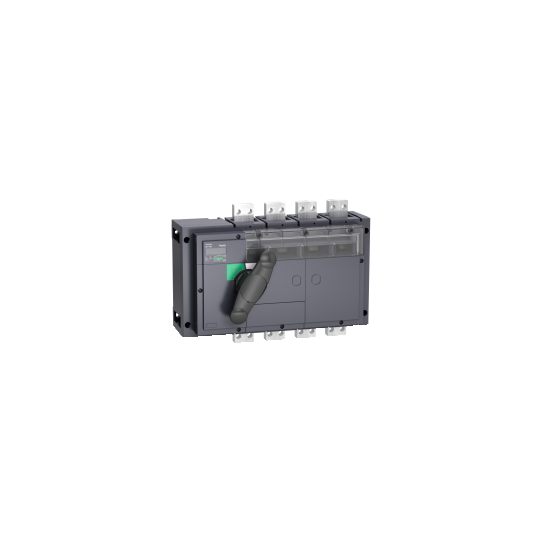

switch disconnector, Compact INV800, visible break, 800 A, standard version with black rotary handle, 4 poles - 31359
SKU : 31359
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
switch disconnector, Compact INV800, visible break, 800 A, standard version with black rotary handle, 4 poles - 31359
DESCRIPTION
| Range: | ComPact |
|---|---|
| Range of product: | INV630b...2500 |
| Product name: | ComPacT INS |
| Device short name: | Interpact INV800 |
| Product or component type: | Switch disconnector |
| Switch-disconnector name: | Interpact INV800 |
| Poles description: | 4P |
| Network type: | DCAC |
| Network frequency: | 50/60 Hz |
| [Ie] rated operational current: | AC-21A: 800 A AC 50/60 Hz 220/240 VAC-21A: 800 A AC 50/60 Hz 380/415 VAC-21A: 800 A AC 50/60 Hz 440/480 VAC-21A: 800 A AC 50/60 Hz 480 V NEMAAC-21A: 800 A AC 50/60 Hz 500/525 VAC-21A: 800 A AC 50/60 Hz 660/690 VAC-22A: 800 A AC 50/60 Hz 220/240 VAC-22A: 800 A AC 50/60 Hz 380/415 VAC-22A: 800 A AC 50/60 Hz 440/480 VAC-22A: 800 A AC 50/60 Hz 480 V NEMAAC-22A: 800 A AC 50/60 Hz 500/525 VAC-22A: 800 A AC 50/60 Hz 660/690 VAC-23A: 800 A AC 50/60 Hz 220/240 VAC-23A: 800 A AC 50/60 Hz 380/415 VAC-23A: 800 A AC 50/60 Hz 440/480 VAC-23A: 800 A AC 50/60 Hz 480 V NEMAAC-23A: 800 A AC 50/60 Hz 500/525 VAC-23A: 800 A AC 50/60 Hz 660/690 VDC-21A: 800 A DC 125 V 2 poles in seriesDC-22A: 800 A DC 125 V 2 poles in seriesDC-21A: 800 A DC 250 V 4 poles in seriesDC-22A: 800 A DC 250 V 4 poles in seriesDC-23B: 800 A DC 125 V 2 poles in seriesDC-23B: 800 A DC 250 V 4 poles in series |
| [Ui] rated insulation voltage: | 1000 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 12 kV |
| [Ith] conventional free air thermal current: | 800 A at 60 °C |
| [Icm] rated short-circuit making capacity: | 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz75 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz250 V DC |
| Suitability for isolation: | Yes |
| Contact position indicator: | Yes |
| Visible break: | Yes |
| Pollution degree: | 3 |
| Control type: | Direct front rotary handle |
|---|---|
| Handle colour: | Black |
| Mounting mode: | Fixed |
| Mounting support: | RailPlate |
| Upside connection: | Front |
| Downside connection: | Front |
| Maximum power: | AC-23: 250 kW at 220/240 V AC 50/60 HzAC-23: 400 kW at 380/400 V AC 50/60 HzAC-23: 500 kW at 415 V AC 50/60 HzAC-23: 560 kW at 500/525 V AC 50/60 HzAC-23: 710 kW at 660/690 V AC 50/60 Hz |
| Rated duty: | Uninterrupted |
| Intermittent duty class: | Class 120 - 60 % |
| [Icw] rated short-time withstand current: | 10 kA during 20 s conforming to IEC 60947-320 kA during 3 s conforming to IEC 60947-335 kA during 1 s conforming to IEC 60947-342 kA during 0.8 s conforming to IEC 60947-350 kA during 0.5 s conforming to IEC 60947-38 kA during 30 s conforming to IEC 60947-3 |
| Mechanical durability: | 3000 cycles |
| Electrical durability: | AC-21A: 500 cycles 220/240 V AC 50/60 HzAC-21A: 500 cycles 380/415 V AC 50/60 HzAC-21A: 500 cycles 440/480 V AC 50/60 HzAC-21A: 500 cycles 500/525 V AC 50/60 HzAC-21A: 500 cycles 660/690 V AC 50/60 HzAC-22A: 500 cycles 220/240 V AC 50/60 HzAC-22A: 500 cycles 380/415 V AC 50/60 HzAC-22A: 500 cycles 440/480 V AC 50/60 HzAC-22A: 500 cycles 500/525 V AC 50/60 HzAC-22A: 500 cycles 660/690 V AC 50/60 HzAC-23A: 500 cycles 220/240 V AC 50/60 HzAC-23A: 500 cycles 380/415 V AC 50/60 HzAC-23A: 500 cycles 440/480 V AC 50/60 HzAC-23A: 500 cycles 500/525 V AC 50/60 HzAC-23A: 500 cycles 660/690 V AC 50/60 HzDC-21A: 500 cycles 125 V DC 2 poles in seriesDC-22A: 500 cycles 125 V DC 2 poles in seriesDC-23A: 500 cycles 125 V DC 2 poles in seriesDC-21A: 500 cycles 250 V DC 4 poles in seriesDC-22A: 500 cycles 250 V DC 4 poles in seriesDC-23A: 500 cycles 250 V DC 4 poles in series |
| Connection pitch: | 70 mm |
| Height: | 300 mm |
| Width: | 340 mm |
| Depth: | 146.5 mm |
| Net weight: | 18 kg |
| Compatibility code: | INV800 |
| Standards: | IEC 60947-3IEC 60947-1 |
|---|---|
| Product certifications: | KEMA-KEUR |
| IP degree of protection: | IP40 conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to EN 50102 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3303430313595 |
|---|
