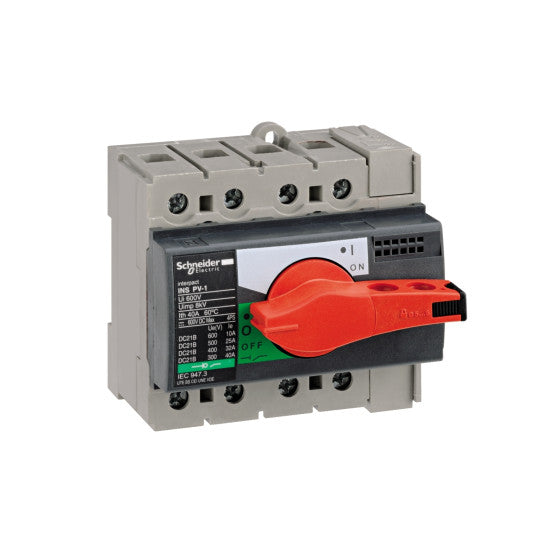

switch-disconnector Interpact INS80PV - 4 poles - 40 A - 28907
SKU : 28907
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
switch-disconnector Interpact INS80PV - 4 poles - 40 A - 28907
DESCRIPTION
| Range: | ComPact |
|---|---|
| Range of product: | INS40...80 |
| Product name: | INS80PV |
| Device short name: | Interpact INS80PV |
| Switch-disconnector name: | INS80PV |
| Poles description: | 4P |
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| [Ie] rated operational current: | DC-21B: 10 A DC 600 VDC-21B: 25 A DC 500 VDC-21B: 32 A DC 400 VDC-21B: 40 A DC 300 V |
| [Ui] rated insulation voltage: | 600 V |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ith] conventional free air thermal current: | 40 A at 60 °C |
| [Ue] rated operational voltage: | 600 V DC |
| Suitability for isolation: | Yes |
| Contact position indicator: | Yes |
| Control type: | Rotary handle |
|---|---|
| Mounting mode: | Fixed |
| Mounting support: | Plate35 mm symmetrical DIN rail |
| Upside connection: | Front |
| Downside connection: | Front |
| Electrical durability: | 6000 cycles full load |
| Height: | 100 mm |
| Width: | 135 mm |
| Depth: | 62.5 mm |
| Product weight: | 0.8 kg |
| Compatibility code: | INS80PV |
| Standards: | CSA C22.2 No 5.2UL 489 |
|---|---|
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480217395 |
|---|
