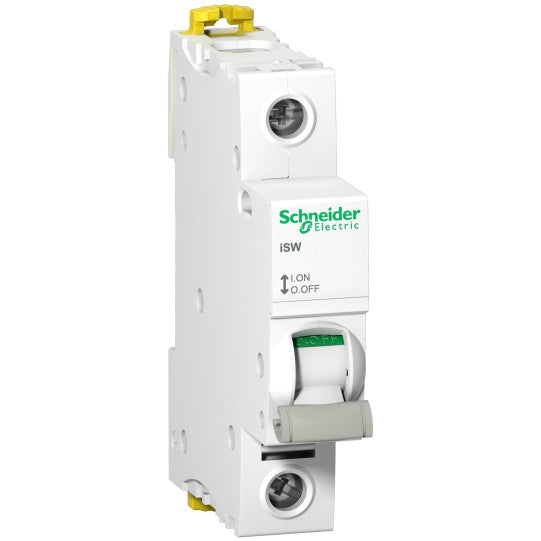

switch disconnector iSW - 1P - 100 A - 240 V - A9S65191
SKU : A9S65191
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
switch disconnector iSW - 1P - 100 A - 240 V - A9S65191
DESCRIPTION
| Range of product: | ISW 40...125 |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 iSW |
| Product or component type: | Switch disconnector |
| Device short name: | iSW |
| Device application: | IsolationControl |
| Poles description: | 1P |
| Utilisation category: | AC-22A |
| Suitability for isolation: | Yes |
| [Ie] rated operational current: | 100 A at 240 V AC 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 240 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity: | 5 kA switch-disconnector alone |
| [Icw] rated short-time withstand current: | 1500 A |
| [Ui] rated insulation voltage: | 250 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Contact position indicator: | Yes |
| Mounting mode: | Fixed |
| Mounting support: | DIN rail |
| Comb busbar and distribution block compatibility: | Top or bottom: YES |
| Connection pitch: | 18 mm between devices |
| 9 mm pitches: | 2 |
| Height: | 85 mm |
| Width: | 18 mm |
| Depth: | 73 mm |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles |
| Connections - terminals: | Tunnel type terminals (top or bottom) - Tunnel type terminals (top or bottom) - Tunnel type terminals (top or bottom) - |
| Wire stripping length: | 9 mm |
| Tightening torque: | 3.5 N.m |
| Market segment: | Small commercialResidential |
| Compatibility code: | ISW |
| Standards: | IEC 60947-3EN 60947-3 |
|---|---|
| IP degree of protection: | IP20 |
| Pollution degree: | 3 |
| Tropicalisation: | 2 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480531125 |
|---|
