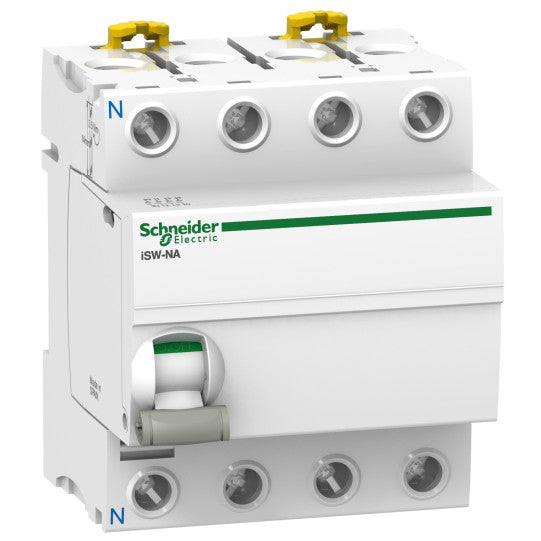

switch-disconnector iSW-NA - 3P + N - 63 A - A9S70763
SKU : A9S70763
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
switch-disconnector iSW-NA - 3P + N - 63 A - A9S70763
DESCRIPTION
| Range of product: | ISW-NA |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iSW-NA |
| Product or component type: | Switch disconnector |
| Device short name: | ISW-NA |
| Device application: | ControlIsolation |
| Poles description: | 3P + N |
| Neutral position: | Left |
| Utilisation category: | AC-22A conforming to EN/IEC 60947-3 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-3 |
| [Ie] rated operational current: | 63 A at 400/415 V AC 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 400/415 V AC 50/60 Hz |
| [Icm] rated short-circuit making capacity: | 5 kA switch-disconnector alone |
| [Icw] rated short-time withstand current: | 800 A during 1 s |
| [Ui] rated insulation voltage: | 500 V AC 50/60 Hz conforming to EN/IEC 60947-3 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-3 |
| Control type: | ToggleRemote tripping |
| Local signalling: | ON/OFF indication |
| Contact position indicator: | Yes |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Comb busbar and distribution block compatibility: | Top or bottom: YES |
| 9 mm pitches: | 8 |
| Height: | 85 mm |
| Width: | 72 mm |
| Depth: | 74 mm |
| Product weight: | 0.3 kg |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles |
| Connections - terminals: | Tunnel type terminals (top or bottom) 1 cable(s) 1...25 mm² flexible with cable endTunnel type terminals (top or bottom) 1 cable(s) 1...25 mm² flexible without cable endTunnel type terminals (top or bottom) 1 cable(s) 1...35 mm² rigid without cable end |
| Wire stripping length: | 14 mm |
| Tightening torque: | 3.5 N.m |
| Product compatibility: | Tripping release |
| Market segment: | Small commercialResidential |
| Compatibility code: | ISW-NA |
| Standards: | EN 60947-3IEC 60947-3 |
|---|---|
| IP degree of protection: | IP20 |
| Pollution degree: | 3 conforming to IEC 60947-3 |
| Tropicalisation: | 2 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -35...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480098956 |
|---|
