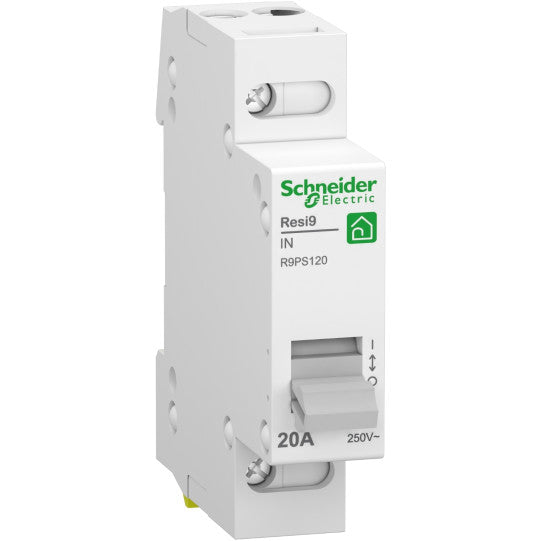

Switch disconnector, Resi9 IN, 1P, 20 A, 250 V - R9PS120
SKU : R9PS120
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Switch disconnector, Resi9 IN, 1P, 20 A, 250 V - R9PS120
DESCRIPTION
| Range of product: | Resi9 |
|---|---|
| Range: | Resi9 |
| Product name: | Resi9 XP IN |
| Product or component type: | Switch disconnector |
| Device application: | Control |
| Poles description: | 1P |
| Utilisation category: | AC-22A conforming to IEC 60669-2-4 |
| Standards: | EN/IEC 60669-1 |
| Product certifications: | NF |
| Quality labels: | NF |
| [Ie] rated operational current: | 20 A at 250 V AC 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz |
| Network frequency: | 50/60 Hz |
| Rated conditional short-circuit current: | Inc 3 kA |
| [Ui] rated insulation voltage: | 250 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 60669-2-4 |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 77 mm |
| Width: | 18 mm |
| Depth: | 74 mm |
| Colour: | White (RAL 9003) |
| Mechanical durability: | 100000 cycles |
| Electrical durability: | AC-22: 30000 cycles |
| Connections - terminals: | Tunnel type terminals (top or bottom) - 1 x 10 mm² - flexibleTunnel type terminals (top or bottom) - 1 x 10 mm² - rigidTunnel type terminals (top or bottom) - 2 x 4 mm² - flexibleTunnel type terminals (top or bottom) - 2 x 4 mm² - rigid |
| Compatibility code: | Resi9_Switch |
| Ambient air temperature for operation: | -20...60 °C |
|---|---|
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481176615 |
|---|
