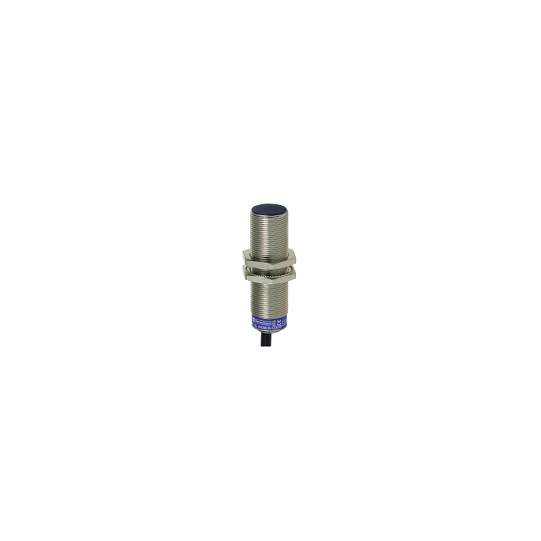

Télémécanique - inductive sensor XS1 M18 - L60mm - brass - Sn5mm - 24..240VAC/DC - cable 2m - XS1M18MA250
SKU : XS1M18MA250
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - inductive sensor XS1 M18 - L60mm - brass - Sn5mm - 24..240VAC/DC - cable 2m - XS1M18MA250
DESCRIPTION
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | General purpose |
| Sensor type: | Inductive proximity sensor |
| Wiring configuration: | 2-wire |
| Output circuit type: | AC/DC |
| Protection type: | Short-circuit protection multi voltage |
| Device application: | 2-wire DC short-circuit protection |
| Sensor name: | XS1 |
| Sensor design: | Cylindrical M18 |
| Size: | 60 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Flush mountable |
| Material: | Metal |
| Type of output signal: | Discrete |
| Wiring technique: | 2-wire |
| [Sn] nominal sensing distance: | 5 mm |
| Discrete output function: | 1 NO |
| Electrical connection: | Cable |
| Cable length: | 2 m |
| [Us] rated supply voltage: | 24...210 V DC24...240 V AC 50/60 Hz |
| Switching capacity in mA: | 5...300 mA AC with overload and short-circuit protection5...200 mA DC with overload and short-circuit protection |
| IP degree of protection: | IP68 double insulation conforming to IEC 60529 |
| Thread type: | M18 x 1 |
|---|---|
| Detection face: | Frontal |
| Front material: | PPS |
| Enclosure material: | Nickel plated brass |
| Sensing range: | > 4...8 mm |
| Operating zone: | 0...4 mm |
| Differential travel: | 1...15% of Sr |
| Cable composition: | 2 x 0.34 mm² |
| Wire insulation material: | PvR |
| Status LED: | Output state: 1 LED (yellow)Supply on: 1 LED (green) |
| Maximum residual current: | 1.5 mA open state |
| Switching frequency: | |
| Maximum voltage drop: | |
| Maximum delay first up: | 70 ms |
| Maximum delay response: | 2 ms |
| Maximum delay recovery: | 4 ms |
| Marking: | CE |
| Threaded length: | 51 mm |
| Length: | 60 mm |
| Product weight: | 0.12 kg |
| Product certifications: | ULCSACCC |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-7 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110915662 |
|---|
