Télémécanique inductive sensor XS4 M30 - L62mm - PPS - Sn15mm - 12..48VDC - cable 2m - XS4P30PA370
SKU : XS4P30PA370
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

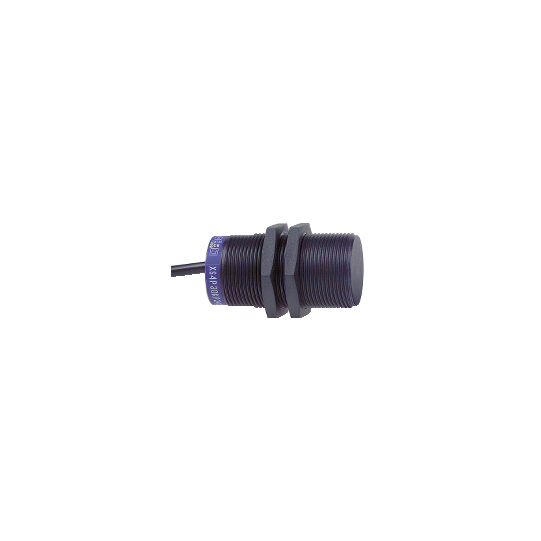

Télémécanique inductive sensor XS4 M30 - L62mm - PPS - Sn15mm - 12..48VDC - cable 2m - XS4P30PA370
DESCRIPTION
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | General purpose |
| Sensor type: | Inductive proximity sensor |
| Sensor name: | XS4 |
| Sensor design: | Cylindrical M30 |
| Size: | 62 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Non flush mountable |
| Material: | Plastic |
| Type of output signal: | Discrete |
| Wiring technique: | 3-wire |
| [Sn] nominal sensing distance: | 15 mm |
| Discrete output function: | 1 NO |
| Output circuit type: | DC |
| Discrete output type: | PNP |
| Electrical connection: | Cable |
| Cable length: | 2 m |
| [Us] rated supply voltage: | 12...48 V DC with reverse polarity protection |
| Switching capacity in mA: | |
| IP degree of protection: | IP68 double insulation conforming to IEC 60529 |
| Thread type: | M30 x 1.5 |
|---|---|
| Detection face: | Frontal |
| Front material: | PPS |
| Enclosure material: | PPS |
| Sensing range: | > 8...15 mm |
| Operating zone: | 0...12 mm |
| Differential travel: | 1...15% of Sr |
| Cable composition: | 3 x 0.34 mm² |
| Wire insulation material: | PvR |
| Status LED: | Output state: 1 LED (yellow) |
| Supply voltage limits: | 10...58 V DC |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | 0...10 mA no-load |
| Maximum delay first up: | 10 ms |
| Maximum delay response: | 0.3 ms |
| Maximum delay recovery: | 0.7 ms |
| Marking: | CE |
| Threaded length: | 52 mm |
| Height: | 30 mm |
| Length: | 62 mm |
| Product certifications: | ULCSACCCEcolab |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110927085 |
|---|
