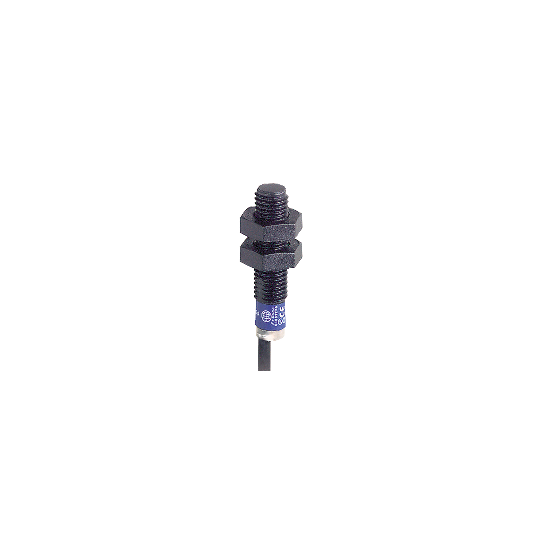

Télémécanique inductive sensor XS4 M8 - L33mm - PPS - Sn2.5mm - 12..24VDC - cable 2m - XS4P08PA340
DESCRIPTION
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | General purpose |
| Sensor type: | Inductive proximity sensor |
| Sensor name: | XS4 |
| Sensor design: | Cylindrical M8 |
| Size: | 33 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Non flush mountable |
| Material: | Plastic |
| Type of output signal: | Discrete |
| Wiring technique: | 3-wire |
| [Sn] nominal sensing distance: | 2.5 mm |
| Discrete output function: | 1 NO |
| Output circuit type: | DC |
| Discrete output type: | PNP |
| Electrical connection: | Cable |
| Cable length: | 2 m |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA: | |
| IP degree of protection: | IP67 conforming to IEC 60529 |
| Thread type: | M8 x 1 |
|---|---|
| Detection face: | Frontal |
| Front material: | PPS |
| Enclosure material: | PPS |
| Sensing range: | > 0...2.5 mm |
| Operating zone: | 0...2 mm |
| Differential travel: | 1...15% of Sr |
| Cable composition: | 3 x 0.11 mm² |
| Wire insulation material: | PvR |
| Status LED: | Output state: 1 LED (yellow) |
| Supply voltage limits: | 10...36 V DC |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | |
| Maximum delay first up: | 10 ms |
| Maximum delay response: | 0.1 ms |
| Maximum delay recovery: | 0.1 ms |
| Marking: | CE |
| Threaded length: | 26 mm |
| Height: | 8 mm |
| Length: | 33 mm |
| Product weight: | 0.025 kg |
| Product certifications: | EcolabCSAUL |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110912852 |
|---|
