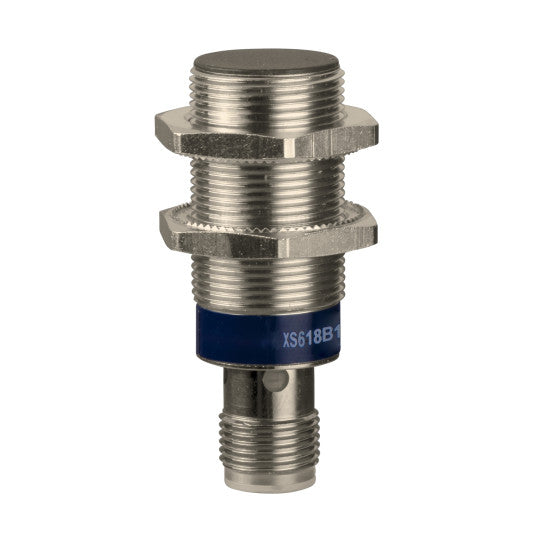

Télémécanique - inductive sensor XS6 M18 - L73mm - brass - Sn8mm - 24..240VAC/DC - 1/2" - XS618B1MAU20
SKU : XS618B1MAU20
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - inductive sensor XS6 M18 - L73mm - brass - Sn8mm - 24..240VAC/DC - 1/2" - XS618B1MAU20
DESCRIPTION
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | General purpose |
| Sensor type: | Inductive proximity sensor |
| Sensor name: | XS6 |
| Sensor design: | Cylindrical M18 |
| Size: | 73 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Flush mountable |
| Material: | Metal |
| Type of output signal: | Discrete |
| Wiring technique: | 2-wire |
| [Sn] nominal sensing distance: | 8 mm |
| Discrete output function: | 1 NO |
| Output circuit type: | AC/DC |
| Electrical connection: | Male connector 1/2"20 UNF, 3 pins |
| [Us] rated supply voltage: | 24...240 V AC/DC 50/60 Hz |
| Switching capacity in mA: | 5...200 mA DC5...300 mA AC |
| IP degree of protection: | IP67 conforming to IEC 60529IP69K conforming to DIN 40050 |
| Thread type: | M18 x 1 |
|---|---|
| Detection face: | Frontal |
| Front material: | PPS |
| Enclosure material: | Nickel plated brass |
| Sensing range: | > 4...8 mm |
| Operating zone: | 0...6.4 mm |
| Differential travel: | 1...15% of Sr |
| Status LED: | Output state: 1 LED (yellow) |
| Supply voltage limits: | 20...264 V AC/DC |
| Maximum residual current: | 0.8 mA open state |
| Switching frequency: | |
| Maximum voltage drop: | |
| Maximum delay first up: | 25 ms |
| Maximum delay response: | 0.5 ms |
| Maximum delay recovery: | 0.5 ms |
| Marking: | CE |
| Threaded length: | 52 mm |
| Length: | 73 mm |
| Product certifications: | CSAUL |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110147308 |
|---|
