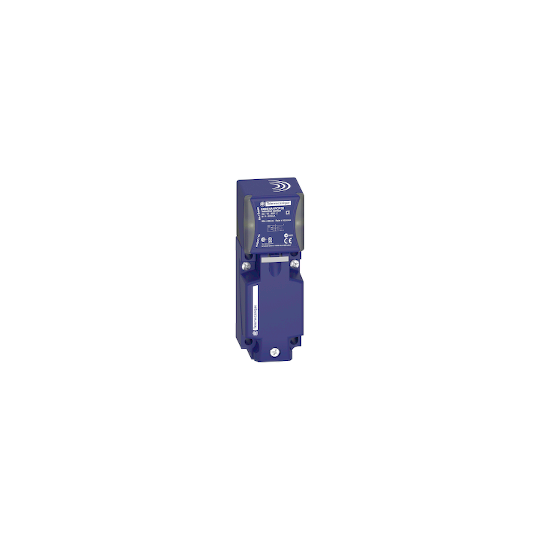

Télémécanique - inductive sensor XS7 40x40x117 - PBT - Sn15 mm - 24..240VAC/DC - terminals - XS7C4A1MPG13
SKU : XS7C4A1MPG13
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - inductive sensor XS7 40x40x117 - PBT - Sn15 mm - 24..240VAC/DC - terminals - XS7C4A1MPG13
DESCRIPTION
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | General purpose |
| Sensor type: | Inductive proximity sensor |
| Device application: | - |
| Sensor name: | XS7 |
| Sensor design: | Form 40 x 40 x 117 |
| Size: | 117 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Flush mountable |
| Material: | Plastic |
| Enclosure material: | PBT |
| Type of output signal: | Discrete |
| Wiring technique: | 2-wire |
| [Sn] nominal sensing distance: | 15 mm |
| Discrete output function: | 1 NO or 1 NC programmable |
| Output circuit type: | AC/DC |
| Electrical connection: | Screw-clamp terminals, 4 x 1.5 mm² |
| [Us] rated supply voltage: | 24...240 V AC 50/60 Hz24...240 V DC |
| Switching capacity in mA: | 5...200 mA DC5...300 mA AC |
| IP degree of protection: | IP67 conforming to IEC 60529IP65 conforming to IEC 60529IP69K conforming to DIN 40050 |
| Detection face: | 5 positions turret head |
|---|---|
| Front material: | PBT |
| Sensing range: | > 8...15 mm |
| Operating zone: | 0...12 mm |
| Differential travel: | 3...15% of Sr |
| Repeat accuracy: | |
| Cable entry number: | 1 tapped entry for Pg 13.5 cable gland |
| Status LED: | Supply on: 1 LED (green)Output state: 1 LED (yellow) |
| Supply voltage limits: | 20...264 V AC/DC |
| Maximum residual current: | 1.5 mA open state 120 V0.6 mA open state 24 V |
| Switching frequency: | |
| Maximum voltage drop: | |
| Maximum delay first up: | 7.5 ms |
| Maximum delay response: | 1.2 ms |
| Maximum delay recovery: | 1.8 ms |
| Marking: | CE |
| Height: | 40 mm |
| Length: | 40 mm |
| Width: | 117 mm |
| Product weight: | 0.244 kg |
| Product certifications: | ULCSACCC |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn for 11 ms conforming to EN 60068-2-27 |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope)Mercury free |
| Code EAN: | 3389119058131 |
|---|
