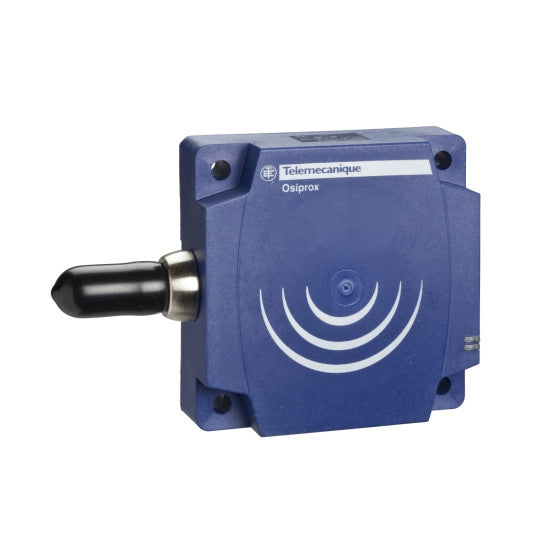

Télémécanique - inductive sensor XS8 80x80x26 - PBT - Sn60mm - 12..24VDC - M12 - XS8D1A1PAM12
SKU : XS8D1A1PAM12
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - inductive sensor XS8 80x80x26 - PBT - Sn60mm - 12..24VDC - M12 - XS8D1A1PAM12
DESCRIPTION
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | General purpose |
| Sensor type: | Inductive proximity sensor |
| Device application: | - |
| Sensor name: | XS8 |
| Sensor design: | Flat form 80 x 80 x 26 |
| Size: | 26 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Non flush mountable |
| Material: | Plastic |
| Enclosure material: | PBT |
| Type of output signal: | Discrete |
| Wiring technique: | 3-wire |
| [Sn] nominal sensing distance: | 40 mm flush mountable60 mm non flush mountable |
| Discrete output function: | 1 NO |
| Output circuit type: | DC |
| Discrete output type: | PNP |
| Electrical connection: | Male connector M12, 4 pins |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA: | |
| IP degree of protection: | IP67 double insulation conforming to IEC 60529 |
| Detection face: | Frontal |
|---|---|
| Front material: | PBT |
| Sensing range: | > 40...60 mm |
| Fine adjustment zone: | 20...40 mm flush mountable20...60 mm non flush mountable |
| Differential travel: | 1...15% of Sr |
| Supply voltage limits: | 10...36 V DC |
| Maximum residual current: | 1.5 mA open state |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | |
| Maximum delay first up: | 10 ms |
| Maximum delay response: | 0.3 ms |
| Maximum delay recovery: | 6 ms |
| Marking: | CE |
| Depth: | 26 mm |
| Height: | 80 mm |
| Width: | 80 mm |
| Product weight: | 0.34 kg |
| Product certifications: | CSAULEcolab |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110142815 |
|---|
