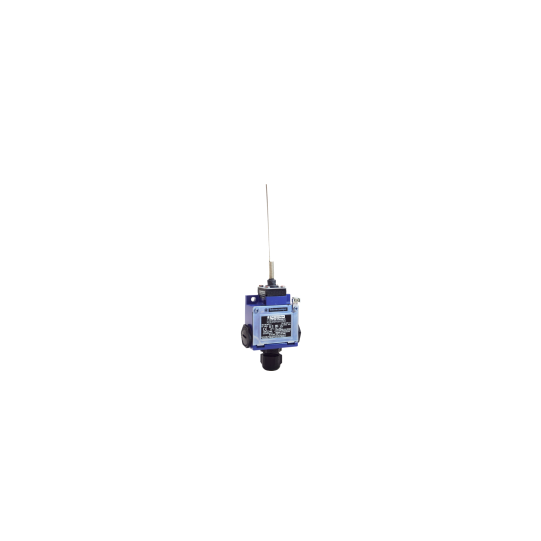

Télémécanique - INTERRUPTEUR DE POSITION - XCKM3906H29EX
DESCRIPTION
| Range of product: | OsiSense ATEX D |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKM |
| Body type: | Fixed |
| Head type: | Multi-directional head |
| Material: | Metal |
| Fixing mode: | By the body |
| Movement of operating head: | Multi-directional |
| Type of operator: | Spring return cat''s whisker |
| Switch actuation: | By any moving part |
| Type of approach: | Multi-directional approach |
| Electrical connection: | Screw-clamp terminals, 1 x 0.34...2 x 0.75 mm² |
| Cable entry number: | 2 tapped entry (M20 x 1.5) for cable gland1 tapped entry (M20 x 1.5) for cable gland (included), cable outer diameter: 7...13 mm |
| Number of poles: | 3 |
| Contacts type and composition: | 2 NC + 1 NO |
| Contacts insulation form: | Zb |
| Contact operation: | Snap action |
| Number of steps: | 1 |
| Positive opening: | Without |
| Minimum torque for tripping: | 0.13 N.m |
| Maximum actuation speed: | 1 m/s |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| Body material: | Zamak |
|---|---|
| Minimum actuation speed: | 0.01 m/min |
| Contact code designation: | B300, AC-15 (240 V, Ie = 1.5 A) conforming to EN 60947-5-1B300, AC-15 (240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix AR300, DC-13 (250 V, Ie = 0.1 A) conforming to EN 60947-5-1R300, DC-13 (250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 6 A AC |
| [Ui] rated insulation voltage: | 300 V conforming to CSA C22.2 No 14400 V, pollution degree: 3 conforming to IEC 60947-1300 V conforming to UL 508 |
| Resistance across terminals: | |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| Short circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles DC-13 24 V 3 W, 5000000 cycles DC-13 48 V 2 W, 5000000 cycles DC-13 120 V 1 W, |
| Mechanical durability: | 10000000 cycles |
| Marking: | II2 D-Ex tb IIIC T85°C Db IP66/67 |
| Width: | 63 mm |
| Height: | 64 mm |
| Depth: | 30 mm |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn 10...500 Hz IEC 60068-2-6 |
| Electrical shock protection class: | Class I conforming to IEC 61140Class I conforming to NF C 20-030 |
| Ambient air temperature for operation: | -20...60 °C |
| Protective treatment: | TC |
| Dust zone: | Zone 21 - 22 |
| Product certifications: | INERIS 04ATEX0014X |
| Standards: | Directive ATEX 94/9/ECEN/IEC 60079-0EN/IEC 60079-31 |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3389118027671 |
|---|---|
| Contexte: | N/A |
