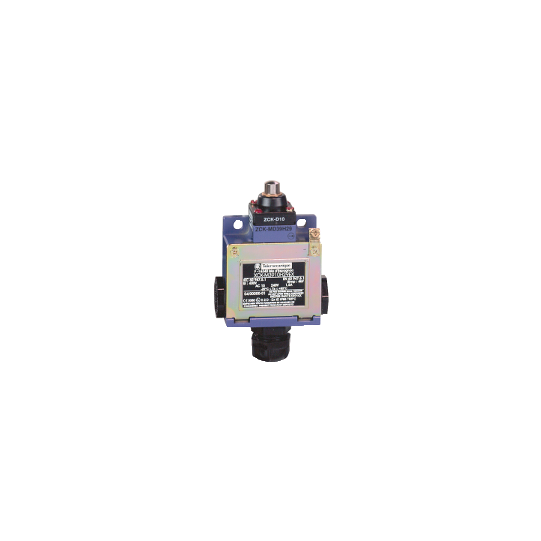

Télémécanique - INTERRUPTEUR DE POSITION - XCKM3915H29EX
SKU : XCKM3915H29EX
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - INTERRUPTEUR DE POSITION - XCKM3915H29EX
DESCRIPTION
| Range of product: | OsiSense ATEX D |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKM |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Metal |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Thermoplastic spring return roller lever |
| Switch actuation: | By 30° cam |
| Type of approach: | Lateral approach, 2 directions |
| Electrical connection: | Screw-clamp terminals, 1 x 0.34...2 x 0.75 mm² |
| Cable entry number: | 2 tapped entry (M20 x 1.5) for cable gland1 tapped entry (M20 x 1.5) for cable gland (included), cable outer diameter: 7...13 mm |
| Number of poles: | 3 |
| Contacts type and composition: | 2 NC + 1 NO |
| Contacts insulation form: | Zb |
| Contact operation: | Snap action |
| Number of steps: | 1 |
| Positive opening: | With |
| Minimum torque for tripping: | 0.1 N.m |
| Maximum actuation speed: | 1.5 m/s |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| Body material: | Zamak |
|---|---|
| Positive opening minimum torque: | 0.25 N.m |
| Minimum actuation speed: | 0.01 m/min |
| Contact code designation: | B300, AC-15 (240 V, Ie = 1.5 A) conforming to EN 60947-5-1B300, AC-15 (240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix AR300, DC-13 (250 V, Ie = 0.1 A) conforming to EN 60947-5-1R300, DC-13 (250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 6 A AC |
| [Ui] rated insulation voltage: | 300 V conforming to CSA C22.2 No 14400 V, pollution degree: 3 conforming to IEC 60947-1300 V conforming to UL 508 |
| Resistance across terminals: | |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| Short circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles DC-13 24 V 3 W, 5000000 cycles DC-13 48 V 2 W, 5000000 cycles DC-13 120 V 1 W, |
| Mechanical durability: | 20000000 cycles |
| Marking: | II2 D-Ex tb IIIC T85°C Db IP66/67 |
| Width: | 63 mm |
| Height: | 64 mm |
| Depth: | 30 mm |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn 10...500 Hz IEC 60068-2-6 |
| Electrical shock protection class: | Class I conforming to IEC 61140Class I conforming to NF C 20-030 |
| Ambient air temperature for operation: | -20...60 °C |
| Protective treatment: | TC |
| Dust zone: | Zone 21 - 22 |
| Product certifications: | INERIS 04ATEX0014X |
| Standards: | Directive ATEX 94/9/ECEN/IEC 60079-0EN/IEC 60079-31 |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3389118027664 |
|---|---|
| Contexte: | N/A |
