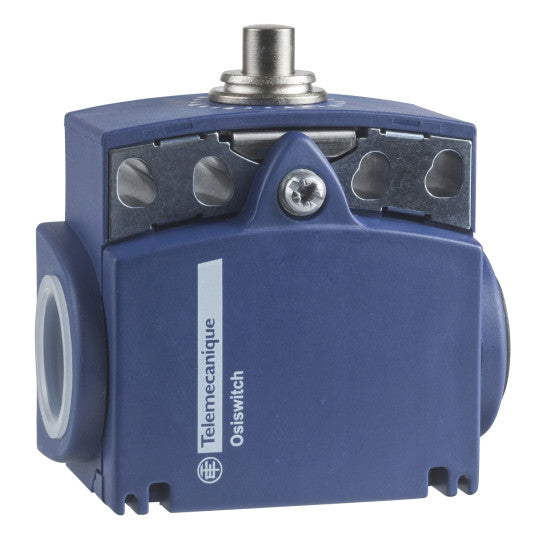

Télémécanique - LIMIT SWITCH - 1 NO - 1 NC - PG11 METAL END PLUM - XCKT2510G1103
SKU : XCKT2510G1103
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - LIMIT SWITCH - 1 NO - 1 NC - PG11 METAL END PLUM - XCKT2510G1103
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKT |
| Sensor design: | Compact form B conforming to CENELEC EN 50047 |
| Body type: | Fixed |
| Head type: | Plunger head |
| Material: | Plastic |
| Body material: | Plastic |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Linear |
| Type of operator: | Spring return plunger metal |
| Type of approach: | Vertical approach, 1 direction |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Slow-break, break before make |
| Switch actuation: | On end |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Cable entry: | 2 entries tapped for Pg 11 cable gland |
| Contacts insulation form: | Zb |
| Positive opening: | With |
| Positive opening minimum force: | 45 N |
| Minimum force for tripping: | 15 N |
| Minimum actuation speed: | 6 m/min |
| Maximum actuation speed: | 0.5 m/s |
| Repeat accuracy: | 0.1 mm on the tripping points with 1 million operating cycles |
| Contact code designation: | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix AQ300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, 120 V, 7 W, operating rate 5000000 cycles, DC-13, 24 V, 13 W, operating rate 5000000 cycles, DC-13, 48 V, 9 W, operating rate |
| Mechanical durability: | 15000000 cycles |
| Terminals description ISO n°1: | (13-14)NO(21-22)NC |
| Compatibility code: | XCKT |
| Specific application: | Compact variable |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 conforming to IEC 60529 |
| IK degree of protection: | IK04 conforming to EN 50102 |
| Electrical shock protection class: | Class II conforming to IEC 61140Class II conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | ULCCCCSA |
| Standards: | IEC 60947-5-1IEC 60204-1UL 508CSA C22.2 No 14EN 60204-1EN 60947-5-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389118071506 |
|---|
