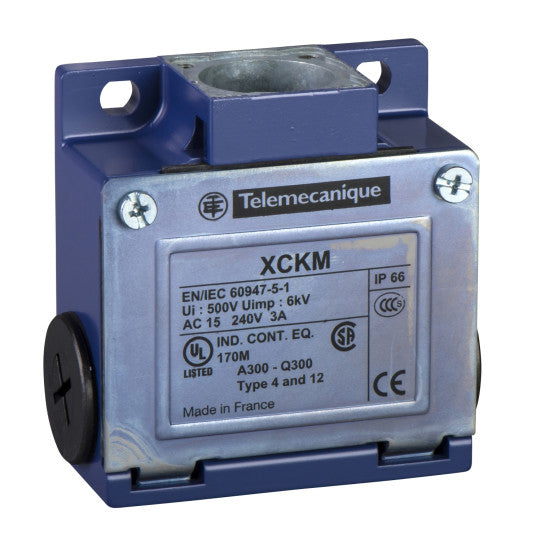

Télémécanique - Limit switch body ZCKM - 2NC - slow-break - Pg11 - ZCKM7
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch body |
| Device short name: | ZCKM |
| Body type: | Fixed |
| Product compatibility: | XCKM |
| Associated head: | ZCKD15ZCKD109ZCKD16ZCKD17ZCKD05ZCKD029ZCKD06ZCKD10ZCKD08ZCKD239ZCKD41ZCKD81ZCKD219ZCKD02ZCKD23ZCKD91ZCKD59ZCKD21 |
| Body material: | Metal |
| Cable entry: | 3 entries tapped for Pg 11 cable gland |
| Number of poles: | 2 |
| Contacts type and composition: | 2 NC |
| Contact operation: | Slow-break, simultaneous |
| Number of steps: | 1 1 position |
| Contacts material: | Silver plated contacts |
| Local display: | Without |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Positive opening: | With |
| Minimum actuation speed: | 6 m/min |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 500 V (pollution degree 3) conforming to IEC 60947-1 for contact block300 V conforming to CSA C22.2 No 14 for contact block300 V conforming to UL 508 for contact block |
| Maximum resistance across terminals: | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13 24 V, 10 W, operating rate 5000000 cycles, DC-13 48 V, 7 W, operating rate 5000000 cycles, DC-13 120 V, 1 W, operating rate |
| Width: | 64 mm |
| Height: | 64 mm |
| Depth: | 30 mm |
| Product weight: | 0.21 kg |
| Terminals description ISO n°1: | (13-14)NO(33-34)NO(31-32)NC |
| Compatibility code: | ZCKM |
| IP degree of protection: | IP66 |
|---|---|
| IK degree of protection: | IK05 |
| Ambient air temperature for operation: | -25...70 °C for standard environment |
| Ambient air temperature for storage: | -40...70 °C |
| Environmental characteristic: | Standard environment |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110663402 |
|---|
