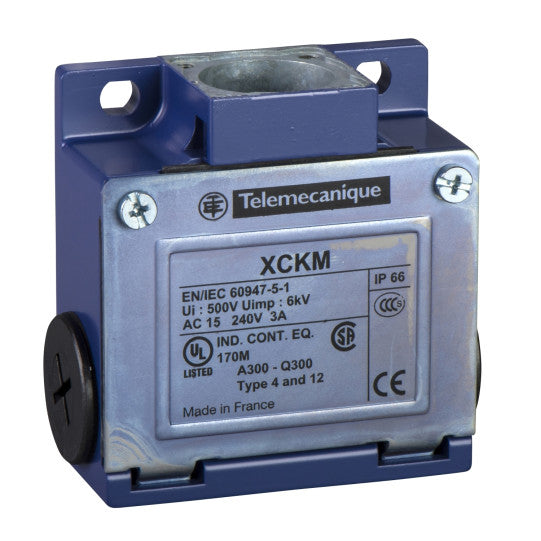

Télémécanique - Limit switch body ZCKM - 2NC - snap action - M20 - ZCKM9H29
SKU : ZCKM9H29
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - Limit switch body ZCKM - 2NC - snap action - M20 - ZCKM9H29
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch body |
| Device short name: | ZCKM |
| Body type: | Fixed |
| Product compatibility: | XCKM |
| Associated head: | ZCKD23ZCKD109ZCKD59ZCKD239ZCKD21ZCKD05ZCKD15ZCKD81ZCKD06ZCKD91ZCKD41ZCKD10ZCKD16ZCKD08ZCKD029ZCKD02ZCKD17ZCKD219 |
| Body material: | Metal |
| Cable entry: | 3 entries tapped for M20 x 1.5 cable gland |
| Number of poles: | 2 |
| Contacts type and composition: | 2 NC |
| Contact operation: | Snap action |
| Number of steps: | 1 1 position |
| Contacts material: | Silver plated contacts |
| Local display: | Without |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Positive opening: | With |
| Minimum actuation speed: | 0.01 m/min |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 500 V (pollution degree 3) conforming to IEC 60947-1 for contact block300 V conforming to CSA C22.2 No 14 for contact block300 V conforming to UL 508 for contact block |
| Maximum resistance across terminals: | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13 120 V, 2 W, operating rate 5000000 cycles, DC-13 24 V, 4 W, operating rate 5000000 cycles, DC-13 48 V, 3 W, operating rate |
| Width: | 64 mm |
| Height: | 64 mm |
| Depth: | 30 mm |
| Product weight: | 0.21 kg |
| Terminals description ISO n°1: | (21-22)NC(31-32)NC(13-14)NO |
| Compatibility code: | ZCKM |
| IP degree of protection: | IP66 |
|---|---|
| IK degree of protection: | IK05 |
| Ambient air temperature for operation: | -25...70 °C for standard environment |
| Ambient air temperature for storage: | -40...70 °C |
| Environmental characteristic: | Standard environment |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110902280 |
|---|
