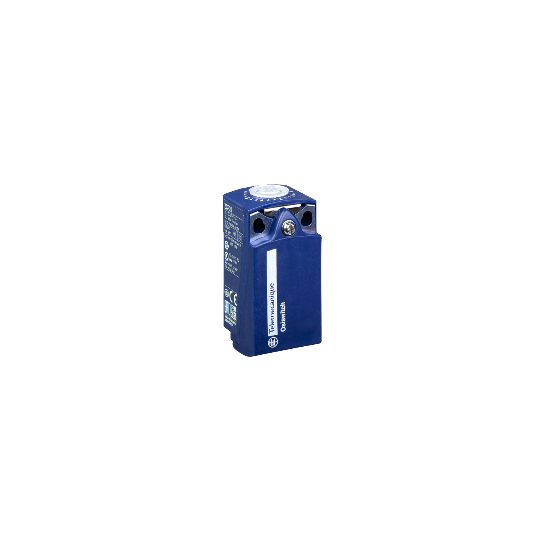

Télémécanique - Limit switch body ZCP - compact - 2NC - snap action - ZCP29
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard compact |
| Product or component type: | Limit switch body |
| Device short name: | ZCP |
| Design: | Compact |
| Body type: | Fixed |
| Associated head: | ZCE08ZCE11ZCEH2ZCE10ZCE66ZCEH0ZCE28ZCE27ZCE63ZCE14ZCE06ZCE09ZCE67ZCE24ZCE21ZCE07ZCE62ZCE02ZCE29ZCE65ZCE13ZCE05ZCE01ZCE64 |
| Body material: | Plastic |
| Number of poles: | 2 |
| Contacts type and composition: | 2 NC |
| Contact operation: | Snap action, simultaneous |
| Associated connection component: | ZCPEN12ZCPEG11ZCPEP16ZCPEP20ZCPEG13ZCPEF12 |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form: | Zb |
| Contacts material: | Silver plated contacts |
| Positive opening: | With |
| Minimum actuation speed: | 0.01 m/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13 120 V, 1 W, operating rate 5000000 cycles, DC-13 24 V, 3 W, operating rate 5000000 cycles, DC-13 48 V, 2 W, operating rate |
| Width: | 31 mm |
| Height: | 65 mm |
| Depth: | 30 mm |
| Product weight: | 0.07 kg |
| Terminals description ISO n°1: | (13-14)NO(33-34)NO(21-22)NC |
| Device presentation: | Basic element |
| Compatibility code: | ZCP |
| Product compatibility: | XCKP |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110180336 |
|---|
