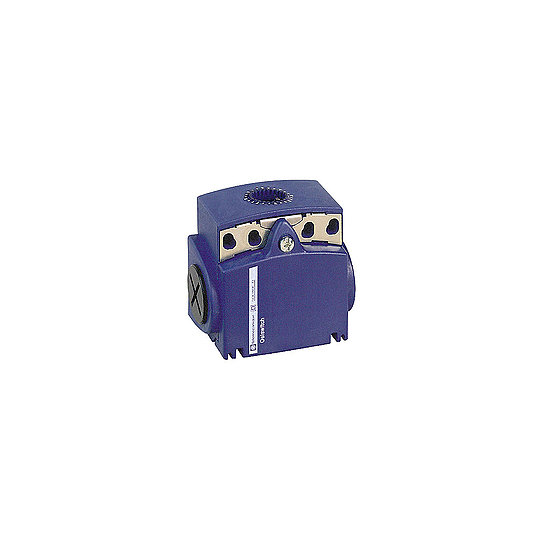

Télémécanique - Limit switch body ZCT - compact - 1NC+1NO - snap action - M16 - ZCT21P16
SKU : ZCT21P16
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - Limit switch body ZCT - compact - 1NC+1NO - snap action - M16 - ZCT21P16
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard compact |
| Product or component type: | Limit switch body |
| Device short name: | ZCT |
| Design: | Compact |
| Body type: | Fixed |
| Associated head: | ZCE05ZCE02ZCE29ZCE13ZCE63ZCEH2ZCE01ZCE62ZCEH0ZCE66ZCE21ZCE07ZCE08ZCE24ZCE09ZCE67ZCE06ZCE10ZCE14ZCE27ZCE11ZCE65ZCE28ZCE64 |
| Body material: | Plastic |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
|---|---|
| Cable entry: | 2 entries tapped for M16 x 1.5 cable gland, cable outer diameter: 4...8 mm |
| Contacts insulation form: | Zb |
| Contacts material: | Silver plated contacts |
| Positive opening: | With |
| Minimum actuation speed: | 0.01 m/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13 120 V, 7 W, operating rate 5000000 cycles, DC-13 24 V, 13 W, operating rate 5000000 cycles, DC-13 48 V, 9 W, operating rate |
| Width: | 58 mm |
| Height: | 51 mm |
| Depth: | 30 mm |
| Product weight: | 0.085 kg |
| Terminals description ISO n°1: | (21-22)NC(13-14)NO_CL |
| Device presentation: | Basic element |
| Compatibility code: | ZCT |
| Product compatibility: | XCKT |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110184440 |
|---|
