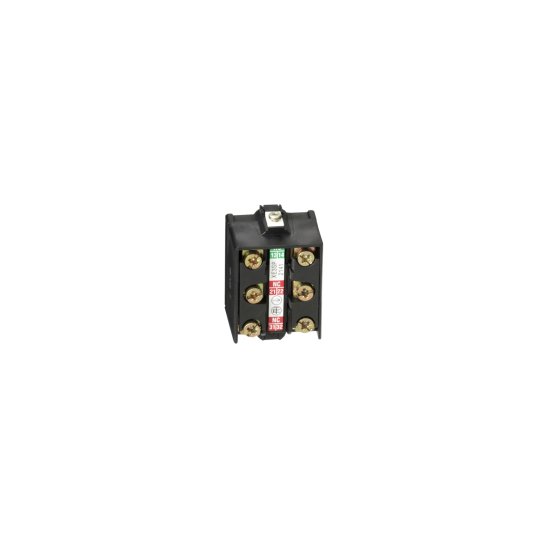

Télémécanique limit switch contact block - 2NC+1NO - snap action - XE3SP2141
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch contact block |
| Device short name: | XE3S |
| Associated body: | ZCD39ZCP39ZCKLD39ZCKMD39ZCKJD39ZXKSD39 |
| Number of poles: | 3 |
| Contacts type and composition: | 1 NO + 2 NC |
| Contact operation: | Snap action |
| Product compatibility: | XCKDXCKPXCKMXCKSXCKJXCKL |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² |
| Contacts insulation form: | Zb |
| Contacts material: | Silver plated contacts |
| Positive opening: | With |
| Minimum actuation speed: | 0.01 mm/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V), Ie = 1.5 A, Ithe = 6 A conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A |
| Maximum resistance across terminals: | 25 mOhm conforming to IEC 60255-7 category 3 |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508300 V conforming to CSA C22.2 No 14400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13 120 V, 1 W, operating rate 5000000 cycles, DC-13 24 V, 3 W, operating rate 5000000 cycles, DC-13 48 V, 2 W, operating rate |
| Compatibility code: | XE3S |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| Environmental Disclosure: | ENVPEP110614EN |
| Code EAN: | 3389110192988 |
|---|
