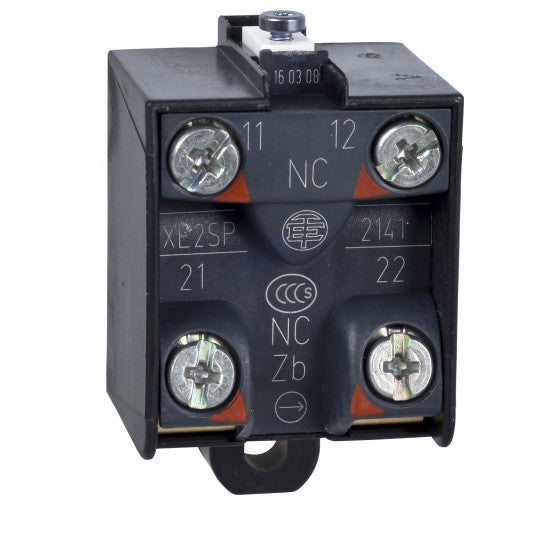

Télémécanique - limit switch contact block - 2NC - snap action, simultaneous - XE2SP2141
SKU : XE2SP2141
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - limit switch contact block - 2NC - snap action, simultaneous - XE2SP2141
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch contact block |
| Device short name: | XE2S |
| Associated body: | ZCKJ9ZCKS9ZCKM9ZCD29ZCP29 |
| Number of poles: | 2 |
| Contacts type and composition: | 2 NC |
| Contact operation: | Snap action |
| Product compatibility: | XCKMXCKJXCKPXCKSXCKD |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form: | Zb |
| Contacts material: | Silver plated contacts |
| Positive opening: | With |
| Minimum actuation speed: | 0.01 mm/s |
| Contact code designation: | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix AQ300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| Maximum resistance across terminals: | 25 mOhm conforming to IEC 60255-7 category 3 |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13 120 V, 4 W, operating rate 5000000 cycles, DC-13 24 V, 10 W, operating rate 5000000 cycles, DC-13 48 V, 7 W, operating rate |
| Compatibility code: | XE2S |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| Environmental Disclosure: | ENVPEP110614EN |
| Code EAN: | 3389110192971 |
|---|
