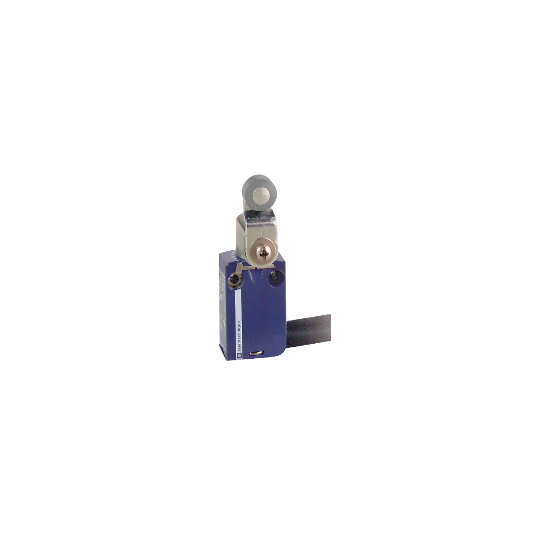

Télémécanique - Limit switch, Limit switches XC Standard, XCMD, steel roller lever, 1NC+1 NO, snap, 5 m - XCMD2116L5SBW
SKU : XCMD2116L5SBW
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - Limit switch, Limit switches XC Standard, XCMD, steel roller lever, 1NC+1 NO, snap, 5 m - XCMD2116L5SBW
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCMD |
| Sensor design: | Miniature |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Metal |
| Body material: | Zamak |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Spring return roller lever steel |
| Type of approach: | Lateral approach, 2 directions |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Switch actuation: | By 30° cam |
|---|---|
| Electrical connection: | Removable cable connector |
| Cable length: | 5 m |
| Cable composition: | 5 x 0.75 mm² |
| Wire insulation material: | PvR |
| Contacts insulation form: | Zb |
| Positive opening: | With |
| Positive opening minimum force: | 0.5 N |
| Minimum force for tripping: | 0.1 N |
| Maximum actuation speed: | 1.5 m/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 400 V (pollution degree 3) conforming to IEC 60947-5-1300 V (pollution degree 3) conforming to CSA C22.2 No 14300 V (pollution degree 3) |
| [Uimp] rated impulse withstand voltage: | 4 kV IEC 606644 kV IEC 60947-1 |
| Short-circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, 120 V, 1 W, operating rate 5000000 cycles, DC-13, 24 V, 3 W, operating rate 5000000 cycles, DC-13, 48 V, 2 W, operating rate |
| Mechanical durability: | 10000000 cycles |
| Width: | 30 mm |
| Height: | 50 mm |
| Depth: | 16 mm |
| Compatibility code: | XCMD |
| Specific application: | Miniature variable |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP68 conforming to IEC 60529 |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Product certifications: | CSAUL |
| Standards: | EN 60947-5-1IEC 60947-5-1 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389119612555 |
|---|
