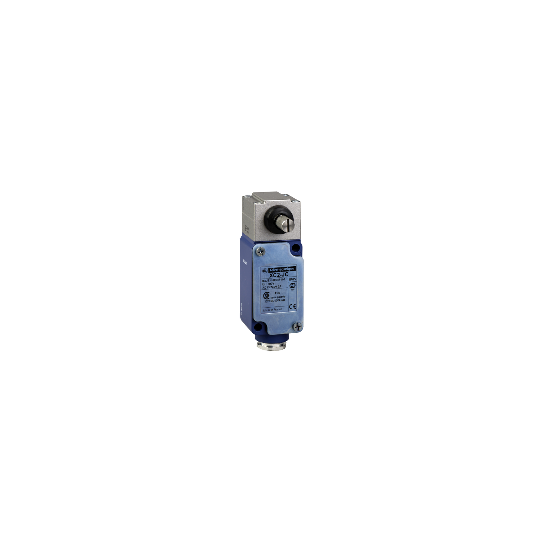

Télémécanique - limit switch XC2-J - steel square rod lever - 1 C/O - XC2JC10151
SKU : XC2JC10151
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - limit switch XC2-J - steel square rod lever - 1 C/O - XC2JC10151
DESCRIPTION
| Range of product: | OsiSense XC |
|---|---|
| Series name: | Special format |
| Product or component type: | Limit switch |
| Product specific application: | For severe applications |
| Device short name: | XC2J |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Metal |
| Movement of operating head: | Rotary |
| Type of operator: | Square rod lever steel square rod 3 mm, L = 125 mm |
| Switch actuation: | By any moving part |
| Type of approach: | Lateral approach, 2 directions |
| Number of poles: | 1 |
| Contact operation: | Snap action |
| Minimum torque for tripping: | 0.2 N.m |
| Maximum actuation speed: | 1.5 m/s |
| Fixing mode: | By the body |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Cable entry: | 1 entry incorporating cable gland, cable outer diameter: 6...13.5 mm |
| Contacts insulation form: | Za |
| Contacts material: | Silver plated contacts |
| Positive opening: | Without |
| Minimum actuation speed: | 0.001 m/min |
| Contact code designation: | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 500 V conforming to IEC 60947-5-1500 V conforming to NF C 20-040 group C300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 325 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, 120 V, 4 W, operating rate 5000000 cycles, DC-13, 24 V, 10 W, operating rate 5000000 cycles, DC-13, 48 V, 7 W, operating rate |
| Mechanical durability: | 30000000 cycles |
| Width: | 40 mm |
| Height: | 141 mm |
| Depth: | 65 mm |
| Product weight: | 0.605 kg |
| Terminals description ISO n°1: | (13-14-11-12)OF |
| Compatibility code: | XC2J |
| Shock resistance: | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 10 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP65 conforming to IEC 60529IP657 conforming to NF C 20-010 |
| IK degree of protection: | IK08 |
| Electrical shock protection class: | Class I conforming to IEC 60536Class I conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | DEMKONEMKOCSA |
| Standards: | VDE 0660-200UL 508IEC 60337-1CSA C22.2 No 14EN/IEC 60947-5-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110327823 |
|---|
