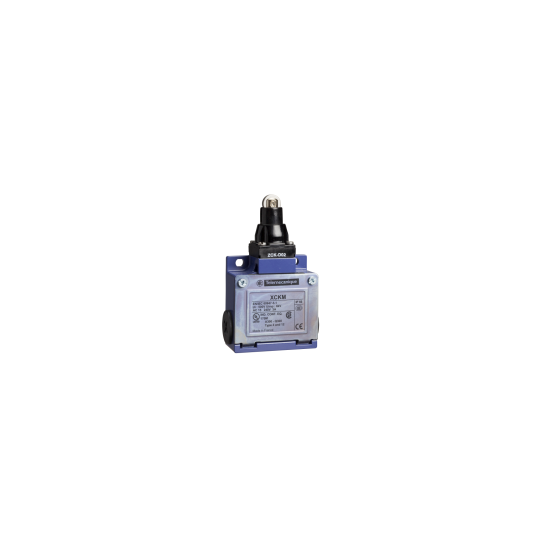

Télémécanique limit switch XCKM - steel roller plunger - 1NC+1NO - snap action - Pg11 - XCKM102
SKU : XCKM102
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique limit switch XCKM - steel roller plunger - 1NC+1NO - snap action - Pg11 - XCKM102
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKM |
| Body type: | Fixed |
| Head type: | Plunger head |
| Material: | Metal |
| Body material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Linear |
| Type of operator: | Spring return roller plunger metal |
| Type of approach: | Lateral approach, 2 directions |
| Cable entry: | 3 entries tapped for Pg 11 cable gland |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Switch actuation: | By 30° cam |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form: | Zb |
| Number of steps: | 1 |
| Positive opening: | With |
| Positive opening minimum force: | 36 N |
| Minimum force for tripping: | 12 N |
| Minimum actuation speed: | 0.01 m/min |
| Maximum actuation speed: | 0.5 m/s |
| Contact code designation: | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix AQ300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A AC |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate 5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate 5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate |
| Mechanical durability: | 20000000 cycles |
| Width: | 64 mm |
| Height: | 64 mm |
| Depth: | 30 mm |
| Product weight: | 0.255 kg |
| Terminals description ISO n°1: | (21-22)NC(13-14)NO |
| Device presentation: | Complete product |
| Compatibility code: | XCKM |
| Specific application: | Classic |
| Shock resistance: | 50 gn for 11 ms conforming to EN/IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn (f= 10...500 Hz) conforming to EN/IEC 60068-2-6 |
| IP degree of protection: | IP66 conforming to EN/IEC 60529 |
| IK degree of protection: | IK05 conforming to EN 50102 |
| Electrical shock protection class: | Class I conforming to IEC 61140Class I conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | ULCSACCC |
| Standards: | IEC 60947-5-1CSA C22.2 No 14IEC 60204-1EN 60947-5-1UL 508EN 60204-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110646436 |
|---|
