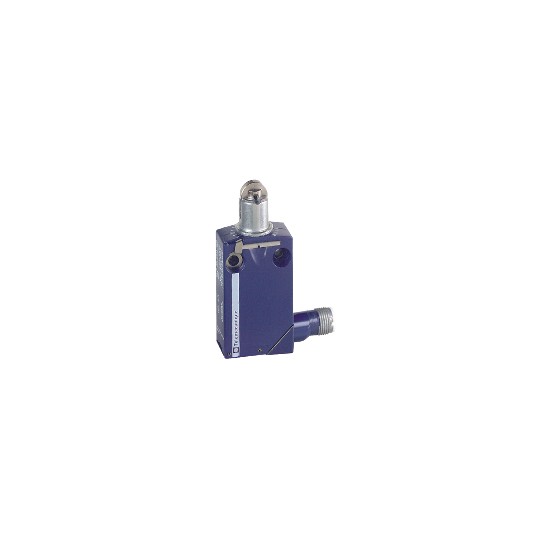

Télémécanique - limit switch XCMD - steel roller plunger - 1NC+1NO - snap - M12 - XCMD2102M12
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCMD |
| Sensor design: | Miniature |
| Body type: | Plug-in body |
| Head type: | Plunger head |
| Material: | Metal |
| Body material: | Zamak |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Linear |
| Type of operator: | Spring return roller lever thermoplastic |
| Type of approach: | Lateral approach, 2 directions |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Switch actuation: | By 30° cam |
|---|---|
| Electrical connection: | Male connector M12, 4 pins |
| Contacts insulation form: | Zb |
| Positive opening: | With |
| Positive opening minimum force: | 35 N |
| Minimum force for tripping: | 7 N |
| Maximum actuation speed: | 0.5 m/s |
| [Ie] rated operational current: | 1 A at 24 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 3 A |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to IEC 60947-5-1 |
| Maximum resistance across terminals: | 25 mOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 2.5 kV conforming to IEC 606642.5 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 4 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, 24 V, 3 W, operating rate |
| Mechanical durability: | 10000000 cycles |
| Width: | 30 mm |
| Height: | 50 mm |
| Depth: | 16 mm |
| Net weight: | 0.09 kg |
| Device presentation: | Complete product |
| Compatibility code: | XCMD |
| Specific application: | Miniature variable |
| Shock resistance: | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP66 conforming to IEC 60529IP69 conforming to IEC 60529 |
| IK degree of protection: | IK04 conforming to EN 62262 |
| Electrical shock protection class: | Class III conforming to IEC 61140Class III conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | ULCCCCSA |
| Standards: | UL 508CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60204-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110221473 |
|---|
