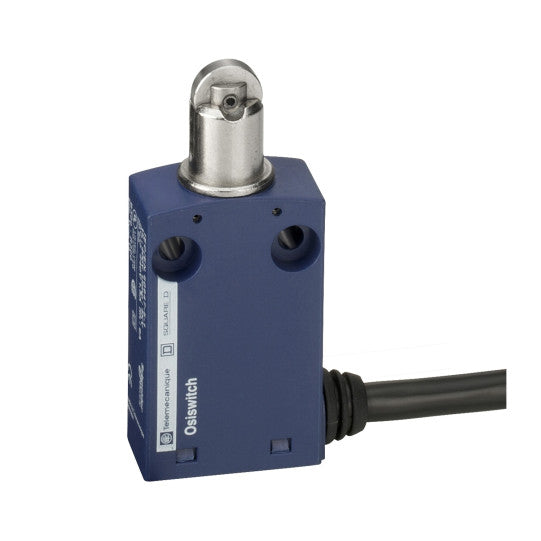

Télémécanique - limit switch XCMN - steel roller plunger - 1NC+1NO - snap - 9 m - XCMN2102L9
SKU : XCMN2102L9
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Télémécanique - limit switch XCMN - steel roller plunger - 1NC+1NO - snap - 9 m - XCMN2102L9
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCMN |
| Sensor design: | Miniature |
| Body type: | Fixed |
| Head type: | Plunger head |
| Material: | Plastic |
| Body material: | Plastic |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Linear |
| Type of operator: | Spring return roller plunger metal |
| Type of approach: | Lateral approach, 2 directions |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Switch actuation: | By 30° cam |
|---|---|
| Electrical connection: | Fixed cable |
| Cable length: | 9 m |
| Cable composition: | 4 x 0.75 mm² |
| Wire insulation material: | PvR |
| Contacts insulation form: | Zb |
| Positive opening: | With |
| Positive opening minimum force: | 35 N |
| Minimum force for tripping: | 7 N |
| Maximum actuation speed: | 0.5 m/s |
| Contact code designation: | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to EN/IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V (pollution degree 3) conforming to UL 508400 V (pollution degree 3) conforming to IEC 60947-5-1300 V (pollution degree 3) conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, 120 V, 1 W, operating rate 5000000 cycles, DC-13, 24 V, 3 W, operating rate 5000000 cycles, DC-13, 48 V, 2 W, operating rate |
| Mechanical durability: | 5000000 cycles |
| Width: | 30 mm |
| Height: | 70.4 mm |
| Depth: | 16 mm |
| Compatibility code: | XCMN |
| Specific application: | Miniature basic |
| Shock resistance: | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK04 conforming to EN 50102 |
| Electrical shock protection class: | Class II conforming to IEC 61140Class II conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | ULCCCCSA |
| Standards: | CSA C22.2 No 14UL 508EN/IEC 60204-1EN/IEC 60947-5-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119034098 |
|---|
